Products information 1)Material: Carbon steel or Manganese steel or boron steel 2)Surface: yellow paint or gray paint or as your request 3)Hardness: HB280-500 or HB320~360 or HB440~500 4)Technique: forging, machining, heat treatment 5) Package: strong plywood pallet 6) Application :used in a wide variety of applications across all Caterpillar,Komatsu , Shantui graders,bulldozers,loader buckets .Multiple edge models to match your applications and job site's needs .
Long wear parts product line includes a comprehensive array of Cutting edge, Segment ,Half arrow,Spade Nose Base Edge,Protector compatible with all makes and models of Caterpillar loaders .

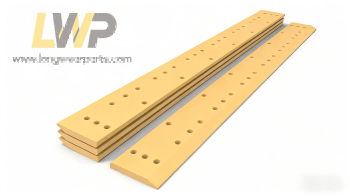

Long wear parts supply full range of bolt-on and weld-in blades , edge design includes Single bevel flat edge(SBF), Wide Bevel flat edge(WBF),Double bevel flat edge(DBF).
Part number
Alternative number
Description
Dimension
Hole
6W2991
6W-2991
Base Edge With Segment Holes
1.750 x 12.000 x 125.125
30
9V1327
9V-1327
Base Edge For Bolt-on Edges Only
1.750 x 12.000 x 125.125
18
6I8249FAB
6I-8249FAB
Corner 2 hole RH
2.500 x 10.002 x 11.750
2
6I8250FAB
6I-8250FAB
Corner 2 hole LH
2.500 x 10.002 x 11.750
2
2530066
253-0066
New Style 2 Hole Corner Protector RH
1.375 x 10.375 x 17.500
2
2530067
253-0067
New Style 2 Hole Corner Protector LH
1.375 x 10.375 x 17.500
2
1735428
173-5428
Old Style 2 Hole Corner Protector RH
1.250 x 9.250 x 14.500
2
1735429
173-5429
Old Style 2 Hole Corner Protector LH
1.250 x 9.250 x 14.500
2
7V4181
7V-4181
Corner 1 hole RH
1.625 x 10.000 x 11.500
1
7V4180
7V-4180
Corner 1 hole LH
1.625 x 10.000 x 11.500
1

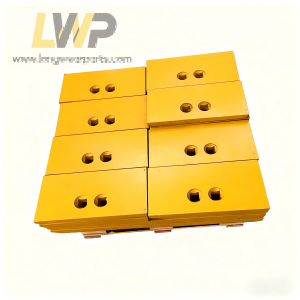

4T5273
4T-5273
Center
1.375 x 16.000 x 52.625
3
1U0761
1U-0761
End
1.625 x 22.000 x 10.375
3
1078572
107-8572
HD Center
1.625 x 16.000 x 52.625
3
1004043
100-4043
HD End
1.750 x 22.000 x 10.375
3
4T6700
4T-6700
Segment
1.180 x 14.170 x 11.500
2
1078580
107-8580
HD Segment
1.750 x 14.250 x 11.500
2
1737447
173-7447
HA Segment (Cast)
1.750 x 13.750 x 11.375
2
9K1619
9K-1619
Base Edge For Bolt-on Edges or Teeth
1.750 x 12.000 x 128.750
24
7K9309FAB
7K-9309FAB
Corner no holes RH
1.750 x 10.758 x 12.500
7K9310FAB
7K-9310FAB
Corner no holes LH
1.750 x 10.758 x 12.500
4T6594
4T-6594
Center
1.375 x 16.000 x 60.500
8
4T6592
4T-6592
End
1.375 x 16.000 x 33.500
4
1078578
107-8578
HD Center
1.750 x 16.000 x 60.500
8
1078577
107-8577
HD End
1.750 x 16.000 x 33.500
4
2174852
217-4852
C/IMP Center REV
1.375 x 16.000 x 60.500
2174851
217-4851
C/IMP End REV
1.375 x 16.000 x 33.500
2V6118
2V-6118
Base Edge Without Holes
1.750 x 12.000 x 129.375
2V6299
2V-6299
Corner no holes LH/RH
9V6574
9V-6574
Base Edge With Segment Holes
1.750 x 12.000 x 130.500
30
7V4188
7V-4188
Base Edge For Bolt-on Edges or Teeth
1.750 x 12.000 x 130.500
18
