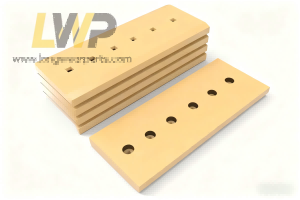

Caterpillar dozer D8 cutting edge 9W5432/135-9373/135-9628

Products information
1)Material: Carbon steel or Manganese steel or boron steel
2)Surface: yellow paint or gray paint or as your request
3)Hardness: HB280-500 or HB320~360 or HB440~500
4)Technique: forging, machining, heat treatment
5) Package: strong plywood pallet
6) Application :used in a wide variety of applications across all Caterpillar,Komatsu , Shantui graders,bulldozers,loader buckets .Multiple edge models to match your applications and job site's needs .

Product Description:

Our aftermarket full sets of Caterpillar D8 Cutting Edge & End Bits replacement are heavy-duty ground engaging tools engineered for CAT D8 series heavy dozers, covering D8N, D8R, D8T models. The Cat D8 heavy dozers are widely deployed in large-scale mining site preparation, heavy rock & earth moving, highway subgrade construction, landfill operation and massive stockpile pushing. Compared with D7, D8 features larger SU semi-universal blade and heavy-duty U blade, so this cutting edge assembly adopts extra-thick high-strength steel plate to withstand continuous heavy impact and extreme abrasive wear under severe rock and compacted soil conditions.
Our factory offer a diverse array of blade types including Boron steel dozer Cutting Edge,Manganese dozer Cutting Edge,Carbon steel dozer Cutting Edge,Boron steel dozer End Bit,Manganese dozer End Bit,Carbon steel dozer End Bit,you can select material & hardness by working condition.

Our high-quality aftermarket Caterpillar D8 cutting edge and end bit can solve below issues :
1. Ordinary low-grade edges quickly turn dull and create high pushing resistance in D8 heavy rock & earth dozing. Our through-hardened edges keep sharp penetration for longer service hours.
2. Prevent cutting edge bending and distortion caused by continuous heavy pushing, which leads to wavy, poor-quality grading surface.
3. Reduce corner chipping, gouging and irregular side profile during heavy slope trimming and angled dozing.
4. Avoid bolt hole elongation and loose assembly caused by long-term heavy vibration and impact.
5. Replace only GET wear parts instead of the whole dozer blade, significantly cutting overall maintenance expenditure of your mining & construction fleet.
Welcome to contact us for more detailed information : we promise that every batch undergoes hardness testing, flatness calibration and hole position inspection. Depend on stable quality, reasonable price and reliable lead time , we win more and more global customers's recognize and long-term orders !

Part number Alternative number Description Dimension Hole
9W5432 9W-5432 Center 1.125 x 13.000 x 48.750 8
1359373 135-9373 Center 1.125 x 13.000 x 49.875 8
4Z9058 4Z-9058 Center 1.125 x 13.000 x 76.800 13
7T9127 7T-9127 Heavier Center 1.375 x 13.000 x 32.438 5
9W6092 9W-6092 Heavier End 1.375 x 13.000 x 35.500 6
9W9098 9W-9098 Heavier Center 1.375 x 13.000 x 48.750 8
1359628 135-9628 Heavier Center 1.375 x 13.000 x 49.875 8
4Z9058-11 4Z-9058-11 Heavy Duty Center 1.375 x 13.000 x 76.800 13
7T9125 7T-9125 Heavy Duty End 1.375 x 13.000 x 31.500 5
1122473 112-2473 Extra Heavy Duty Center 1.750 x 13.000 x 32.438 5
1122475 112-2475 Extra Heavy Duty End 1.750 x 13.000 x 35.500 6
1122474 112-2474 Extra Heavy Duty Center 1.750 x 13.000 x 48.750 8
1359629 135-9629 Extra Heavy Duty Center 1.750 x 13.000 x 49.875 8
8E4193 8E-4193 Cast End Bit RH 1.313 x 15.370 x 23.495 7
8E4194 8E-4194 Cast End Bit LH 1.313 x 15.370 x 23.495 7
8E4537 8E-4537 Cast End Bit RH 1.376 x 15.371 x 23.496 7
8E4538 8E-4538 Cast End Bit LH 1.376 x 15.371 x 23.496 7
8E4193HC 8E-4193HC Hot Cup End Bit RH 1.625 x 15.875 x 23.500 7
8E4194HC 8E-4194HC Hot Cup End Bit LH 1.625 x 15.875 x 23.500 7
8E4537HC 8E-4537HC Hot Cup End Bit RH 2.000 x 15.875 x 23.500 7
8E4538HC 8E-4538HC Hot Cup End Bit LH 2.000 x 15.875 x 23.500 7
6Y4277 6Y-4277 Level Cut End Bit RH 1.625 x 13.000 x 23.300 7
6Y4278 6Y-4278 Level Cut End Bit LH 1.625 x 13.000 x 23.300 7
1003139 100-3139 Level Cut End Bit RH 2.000 x 13.000 x 22.000 7
1003140 100-3140 Level Cut End Bit LH 2.000 x 13.000 x 22.000 7
1368757 136-8757 Level Cut End Bit RH 2.375 x 13.000 x 23.000 7
1368756 136-8756 Level Cut End Bit LH 2.375 x 13.000 x 23.000 7
7T5936 7T-5936 Dozer Blade Support 1.250 x 10.000 x 117.000 19
1473527 147-3527 Dozer Blade Support 1.250 x 10.000 x 187.500 40
6I8403 6I-8403 Dozer End Bit Support 1.250 x 10.000 x 21.500 7
7T7831 7T-7831 Dozer Blade Support 1.250 x 10.000 x 71.625 12
6I8402 6I-8402 Dozer Blade/End Bit Support 1.250 x 10.000 x 53.060 12
