Products information 1)Idler roller body material: 35Mn/35MnB/40Cr/#45Carbon steel 2)Surface hardness: HRC52-60 ;Hardened layer:5~7mm; 3)Shaft material: 40Cr/42CrMo 4)Shaft Hardness: HRC54-60,Hardened layer:2~4mm; 5)Tensile Strength:≥600MPa;Yield Strength:≥350MPa; 6)Impact Toughness: ≥30J/cm2（normal temperature） 7)Package: packed in strong pallets 8)Application: idlers guide the track in and out of the track rollers. They intermittently support the machine's weight and provide a way to c

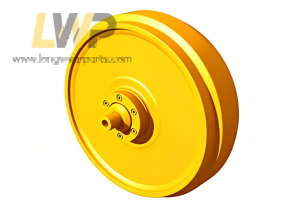

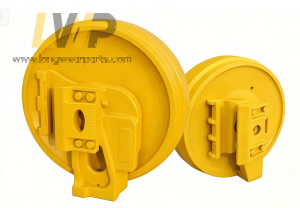

Long wear parts@ supply high quality Liebherr Front Idler/Liebherr Idler Group/ Liebherr Track Idler/Liebherr Idler Wheel/Liebherr Idler Roller.
Long wear parts@ idler wheel is forged from high-quality alloy steels—such as 35Mn, 35MnB, or 40Cr—offering exceptional strength and toughness to resist fracture.
The wheel tread undergoes intermediate-frequency induction hardening, achieving a hardness of HRC 52–60; the hardened layer is uniform, ensuring excellent wear resistance without spalling.
Precision machining ensures superior coaxiality, resulting in smooth, vibration-free operation that minimizes track wear.
The wheel body features an optimized structural design that provides excellent resistance to both impact and fatigue, ensuring stable performance even under the heavy-load conditions typical of mining operations.
Reliable sealing effectively prevents the ingress of dust and water, thereby extending the service life of the internal bearings and bushings.
Long wear parts@idler groups are compatible with Caterpillar(CAT) /Komatsu /ESCO /Sany /Doosan/ Hyundai/ Hitachi/ Liebherr/ Hensley /VOLVO/ Liugong/ Xugong/ MTG/JCB/H&L/Combi/ Case/Fait/John deere/Kobelco/Fiat/Sumitomo/ Bobcat/Samsung machines and so on.
Model
Part number
Description
R954/R964
5614619
Liebherr Front Idler
R954/R964
10004547
Liebherr Front Idler
R954/R956
5607652
Liebherr Front Idler
R922/R932/R934
5611324
Liebherr Front Idler
LU755/PR731
5003814
Liebherr Front Idler
R912/R922/R932/R934
5609447
Liebherr Front Idler
Liebherr
5609332
Liebherr Front Idler
PR712
5801308
Liebherr Front Idler
R932/R934
5614993
Liebherr Front Idler
R950/R954/R956
11114009
Liebherr Front Idler
R900/R313/R317
10009658
Liebherr Front Idler
R932
10028992
Liebherr Front Idler
R964/R974
5609867
Liebherr Front Idler
R950/R960
11621252
Liebherr Front Idler
