Products information 1)Material: Carbon steel or Manganese steel or boron steel 2)Surface: yellow paint or gray paint or as your request 3)Hardness: HB280-500 or HB320~360 or HB440~500 4)Technique: forging, machining, heat treatment 5) Package: strong plywood pallet 6) Application :used in a wide variety of applications across all Caterpillar,Komatsu , Shantui graders,bulldozers,loader buckets .Multiple edge models to match your applications and job site's needs .

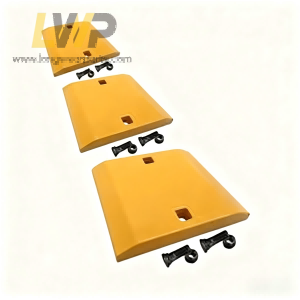

Our aftermarket full sets of Caterpillar 944 Cutting Edge and End Bits replacement are heavy-duty GET wear components exclusively engineered for the Caterpillar 944 large wheel loader. It is widely deployed in large aggregate quarries, hard rock stockpile rehandling, mine auxiliary loading, port bulk stacking, large-scale road foundation backfill, and high-density gravel continuous operation projects.
Our aftermarket Caterpillar Loader cutting edges can be classified to Single piece solid cutting edge and Segmental cutting edge , and our aftermarket Caterpillar Loader end bits can be classified to Standard End Bit,Reinforced / Heavy Duty End Bit and Rock End Bit.
Our aftermarket Caterpillar Loader cutting edges can supply various bevel design, including Double Bevel Flat Edge(DBF),Single Bevel Flat Edge(SBF),Super V Bevel and Wide Bevel Flat Edge(WBF). The bevel angle determines the cutting edge's penetration capability and wear life. A sharper edge penetrates more easily but also wears down faster , end users should select based on "material density + abrasiveness."
Welcome to contact us for more detailed information : we promise that every batch undergoes hardness testing, flatness calibration and hole position inspection. Depend on stable quality, reasonable price and reliable lead time , we win more and more global customers's recognize and long-term orders !
Part number
Alternative number
Description
Dimension
Hole
1U1465
1U-1465
Center
1.000 x 11.000 x 31.000
3
1U1464
1U-1464
End
1.000 x 11.000 x 32.250
3
1321026
132-1026
HD Center
1.375 x 11.000 x 31.000
3
1321027
132-1027
HD End
1.375 x 11.000 x 32.250
3
9W3469
9W-3469
C/IMP Center NR
1.000 x 8.000 x 31.000
3
9W3470
9W-3470
C/IMP End NR RH
1.000 x 8.000 x 32.250
3
9W3471
9W-3471
C/IMP End NR LH
1.000 x 8.000 x 32.250
3
8J9078
8J-9078
HA Center
0.875 x 8.000 x 31.000
3
8J9077
8J-9077
HA End
0.875 x 8.000 x 32.250
3
6W2987
6W-2987
Base Edge With Segment
1.000 x 9.600 x 102.920
30
5V7276
5V-7276
Base Edge For Bolt-on Edges
1.000 x 9.600 x 102.920
18
9W3490
9W-3490
C/IMP Center NR RH
3
9W3491
9W-3491
C/IMP Center NR LH
3
9W3488
9W-3488
C/IMP End NR RH
1.125 x 14.313 x 7.063
3
9W3489
9W-3489
C/IMP End NR LH
1.125 x 14.313 x 7.063
3
9W6747
9W-6747
Rear Wear Plate
1.000 x 10.000 x 20.750
4
8K8162
8K-8162
Base Edge For Bolt-on Edges
1.000 x 9.000 x 105.875
20
1U1470
1U-1470
Center
1.180 x 14.170 x 39.000
4
1U1469
1U-1469
End
1.180 x 14.170 x 33.250
3
1321028
132-1028
HD Center
1.375 x 14.250 x 39.000
4
1321029
132-1029
HD End
1.375 x 14.250 x 33.250
3
9W3466
9W-3466
C/IMP Center NR
1.125 x 10.000 x 39.000
4
9W3467
9W-3467
C/IMP End NR RH
1.125 x 10.000 x 33.250
3
9W3468
9W-3468
C/IMP End NR LH
1.125 x 10.000 x 33.250
3
8J9076
8J-9076
HA Center
0.875 x 8.000 x 39.000
4
8J9075
8J-9075
HA End
0.875 x 8.000 x 33.250
3
