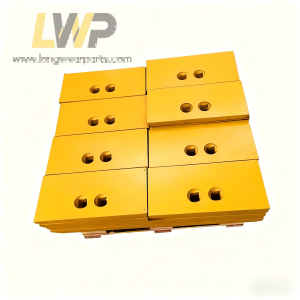

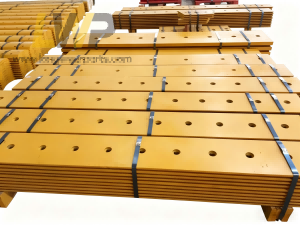

Komatsu Loader WA300 cutting edge 418-815-1211/418-815-1210/418-815-1221/418-815-1220

Products information
1)Material: Carbon steel or Manganese steel or boron steel
2)Surface: yellow paint or gray paint or as your request
3)Hardness: HB280-320 or HB320~360 or HB440~500
4)Technique: forging, machining, heat treatment
5) Package: strong plywood pallet
6) Application :used in a wide variety of applications across all Caterpillar,Komatsu , Shantui graders,bulldozers,loader buckets .Multiple edge models to match your applications and job site's needs .

Our aftermarket full sets of Komatsu WA300 Wheel Loader Cutting Edge & End Bits replacement are bolt-on GET wear parts specially designed for WA300 wheel loader buckets. Our aftermarket Komatsu Loader cutting edges can be classified to Single piece solid cutting edge and Segmental cutting edge , and our aftermarket Komatsu Loader end bits can be classified to Standard End Bit,Reinforced / Heavy Duty End Bit and Rock End Bit.

Our aftermarket Komatsu Loader cutting edges can supply various bevel design, including double bevel edge,single bevel edge,impact-resistant square edge and carbide-impregnated super wear-resistant type.The bevel angle determines the cutting edge's penetration capability and wear life.A sharper edge penetrates more easily but also wears down faster,end users should select based on "material density + abrasiveness."

To ensure stable quality,our factory execute strict quality inspection during our entire process :

1. Material Test: use spectrometer inspection to verify chemical composition , ensure alloy elements like carbon, chromium and manganese meet standard.

2. Hardness Test: adopt random Rockwell hardness test,ensure uniform hardness for cutting edge and end bits and working surface reaches required hardness while maintaining proper toughness to avoid brittle fracture.

3. Dimension Inspection: we will check overall length, thickness, bolt hole pitch and bevel angle, and control tolerance within industrial standard.

4. Visual & Magnetic Particle Inspection: no cracks, porosity or laminations. No chipping on cutting edge and no burrs around bolt holes.

5. Sampling Impact Test: our technician will simulate working impact to verify anti-breakage performance.

We supply aftermarket cutting edges and end bits for full range Komatsu wheel loaders,with carbon steel,boron steel and manganese steel options, single bevel,double bevel, segmented cutting edge are all available.To prepare accurate quotation, pls kindly tell us your loader model,OEM number or dimensions of cutting edge and end bits,working site condition,we can provide MTC and pre-shipment inspection for bulk orders. Looking forward to your reply.

Model	Part number	Alternative number	Description
WA300	418-815-1211	4188151211	Edges (Bolt-on)
WA300	418-815-1210	4188151210	Edges (Bolt-on)
WA300	418-815-1221	4188151221	Edges (Bolt-on)
WA300	418-815-1220	4188151220	Edges (Bolt-on)
WA300	419-T65-1120	419T651120	Base Edge with segment hole
WA300	419-838-1110	4198381110	Center segment
WA300	421-838-1110	4218381110	End segment
WA300	419-809-1120	4198091120	Spade Nose Base Edge
WA300	419-809-1160	4198091160	Weld-on Corner Edge
WA300	419-809-1150	4198091150	Weld-on Corner Edge
WA300	419-823-1310	4198231310	Dozer Edge
WA300	423-823-1320	4238231320	Dozer End
