Komatsu Dozer D455 cutting edge 198-72-A1181/19872A1181

Products information
1)Material: Carbon steel or Manganese steel or boron steel
2)Surface: yellow paint or gray paint or as your request
3)Hardness: HB280-320 or HB320~360 or HB440~500
4)Technique: forging, machining, heat treatment

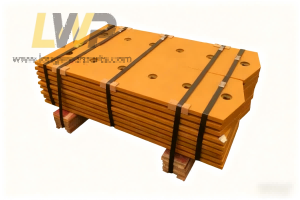

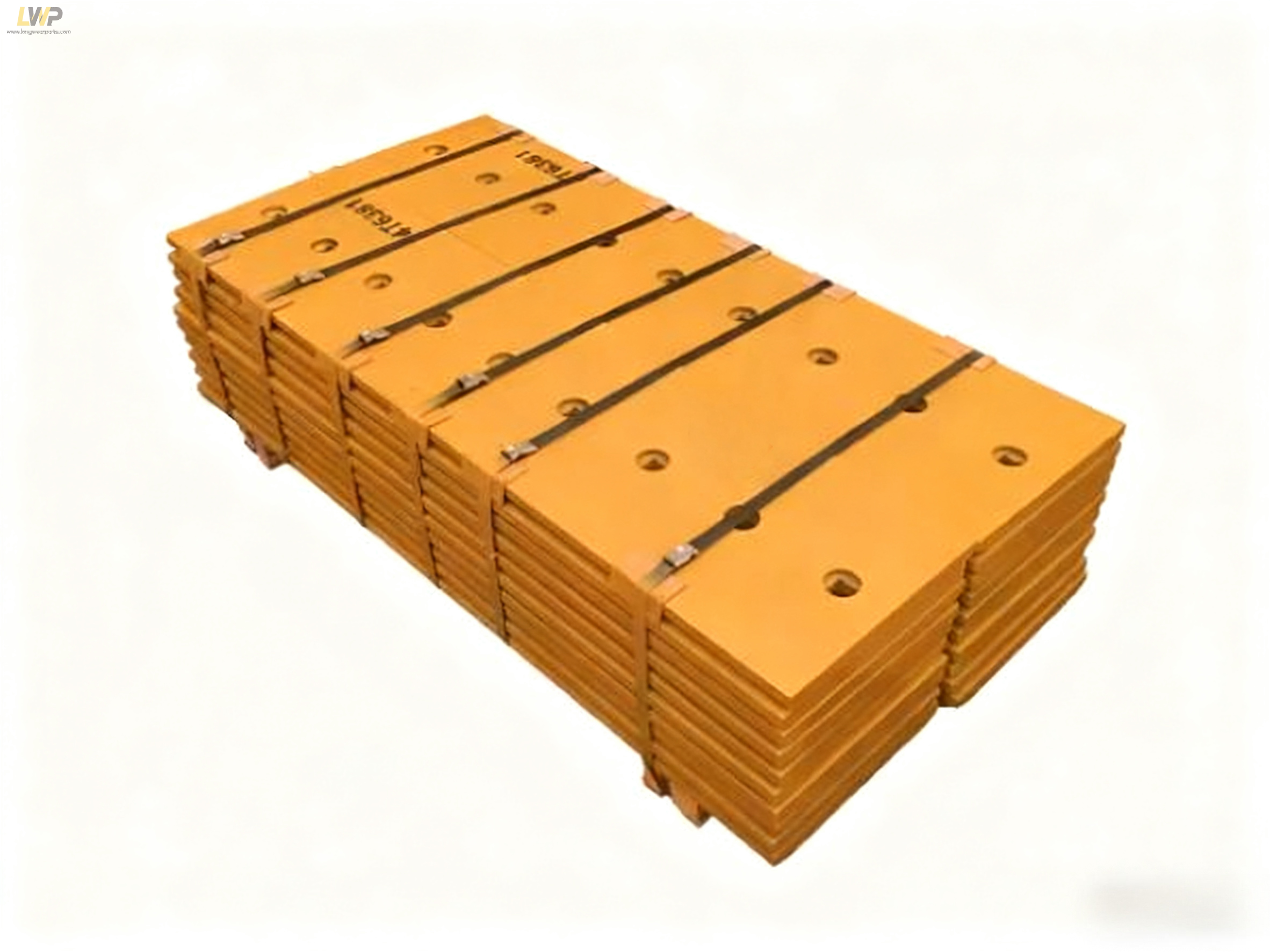

5) Package: strong plywood pallet
6) Application :used in a wide variety of applications across all Caterpillar,Komatsu , Shantui graders,bulldozers,loader buckets .Multiple edge models to match your applications and job site's needs .

Our aftermarket full sets of Komatsu D455 crawler dozer Cutting Edge & End Bits replacement are bolt-on GET wear parts specially designed for D455 crawler dozer buckets. The Komatsu D455 crawler dozers are widely used in open-pit overburden stripping, mass earthmoving, blasted rock handling, dam core filling, mine reclamation and heavy yard grading.

There are mainly 4 raw material options :

1. 30MnB Boron steel : use most, hardness is about HRC 440–500,can balance toughness and wear resistance well,it is ideal for sand, gravel and earth works.

2. C80 Carbon Steel : it is economical, hardness can reach HB280–360 after quenched and tempered, Suit for pure earthmoving and loose material handling, not fit rocky and high-impact sites.

3. NM400/NM450 alloy steel : own superior anti-scouring and wear resistance compared with boron steel, has greatly extending service life for long-term gravel, aggregate and construction debris working scenarios.

4. Mn13 high manganese steel : own work-hardening property, the surface will get harder under continuous impact. It fits occasional rock and hard impact. Not economical for pure earthmoving.

We can supply various bevel design cutting edges for Komatsu D455 crawler dozers , including double bevel cutting edge,single bevel cutting edge, square edge and segmented cutting edge. Different bevel design fit different working site condition.We can also supply various end bit styles, including standard bolt-on end bit,heavy duty reinforced end bit,weld-on end bit and serrated end bit.

Welcome to contact us for more detailed information.Normal production lead time: 25–35 working days upon receipt of deposit. To quote precisely, please share your loader model, OEM part numbers for cutting edge & end bits, plate thickness, required bevel type, end bit style,we can provide material and hardness test report with stable lead time.

Model	Part number	Alternative number	Description
D455	198-72-A1181	19872A1181	Dozer cutting edge
D455	198-71-11181	1987111181	End edge
D455	198-71-11161	1987111161	Hot cup end bit
D455	198-71-11171	1987111171	Hot cup end bit
D455	195-71-61930	1957161930	Cast end bit
D455	195-71-61940	1957161940	Cast end bit
D455	195-71-61930B	1957161930B	Hot cup end bit
D455	195-71-61940B	1957161940B	Hot cup end bit
D455	195-70-12492	1957012492	Dozer cutting edge
