Products information 1)Material: Carbon steel or Manganese steel or boron steel 2)Surface: yellow paint or gray paint or as your request 3)Hardness: HB280-500 or HB320~360 or HB440~500 4)Technique: forging, machining, heat treatment 5) Package: strong plywood pallet 6) Application :used in a wide variety of applications across all Caterpillar,Komatsu , Shantui graders,bulldozers,loader buckets .Multiple edge models to match your applications and job site's needs .

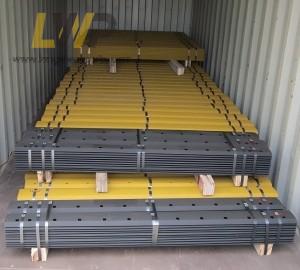

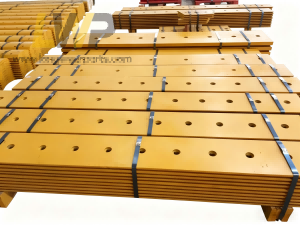

Our aftermarket Caterpillar 950 Cutting Edge and End Bits replacement are heavy-duty GET wear components specially designed for Caterpillar 950 series wheel loaders.The Cat 950 is a widely popular medium-large wheel loader for quarry, aggregate yard, mining auxiliary, port and large earthmoving projects.
Our aftermarket Caterpillar Loader cutting edges can be classified to Single piece solid cutting edge and Segmental cutting edge , and our aftermarket Caterpillar Loader end bits can be classified to Standard End Bit,Reinforced / Heavy Duty End Bit and Rock End Bit.
Our aftermarket Caterpillar Loader cutting edges can supply various bevel design, including Double Bevel Flat Edge(DBF),Single Bevel Flat Edge(SBF),Super V Bevel and Wide Bevel Flat Edge(WBF). The bevel angle determines the cutting edge's penetration capability and wear life. A sharper edge penetrates more easily but also wears down faster , end users should select based on "material density + abrasiveness."
Welcome to contact us for more detailed information.Normal production lead time: 25–35 working days upon receipt of deposit. The lead time depends on order quantity and production schedule. We will confirm the exact delivery schedule and notify you once production starts. Rush orders are available upon negotiation.
Part number
Alternative number
Description
Dimension
Hole
7T5962
7T-5962
Center
1.180 x 14.170 x 20.875
4
7T5963
7T-5963
Center RH
1.180 x 14.170 x 28.438
4
7T5960
7T-5960
End RH
1.180 x 14.170 x 24.625
4
7T5961
7T-5961
Center LH
1.180 x 14.170 x 28.438
4
7T5964
7T-5964
End RH
1.180 x 14.170 x 24.625
4
4T3015
4T-3015
Segment
1.180 x 14.170 x 10.125
2
4T9123
4T-9123
Segment RH
1.180 x 14.170 x 14.000
2
4T9124
4T-9124
Segment LH
1.180 x 14.170 x 14.000
2
1321038
132-1038
HD Segment
1.375 x 14.250 x 10.125
2
1321039
132-1039
HD Segment RH
1.375 x 14.250 x 14.000
2
1321040
132-1040
HD Segment LH
1.375 x 14.250 x 14.000
2
1321035
132-1035
HD Center Segment
1.375 x 11.000 x 8.860
2
1321036
132-1036
HD End Segment
1.375 x 11.000 x 8.250
2
4T6694HA
4T-6694HA
HA Segment
1.375 x 10.875 x 9.000
2
4T6693HA
4T-6693HA
HA Segment
1.375 x 10.875 x 8.250
2
1414847
141-4847
Base Edge With Segment
1.250 x 11.130 x 113.620
30
5V4696
5V-4696
Base Edge For Bolt-on Edges
1.250 x 11.125 x 107.750
18
