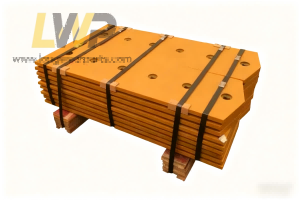

Caterpillar dozer D8 cutting edge 4T2943/4T3419/4T2861

Products information
1)Material: Carbon steel or Manganese steel or boron steel
2)Surface: yellow paint or gray paint or as your request
3)Hardness: HB280-500 or HB320~360 or HB440~500
4)Technique: forging, machining, heat treatment
5) Package: strong plywood pallet
6) Application :used in a wide variety of applications across all Caterpillar,Komatsu , Shantui graders,bulldozers,loader buckets .Multiple edge models to match your applications and job site's needs .

Product Description:

Our aftermarket full sets of Caterpillar D8 Cutting Edge & End Bits replacement are heavy-duty ground engaging tools engineered for CAT D8 series heavy dozers, covering D8N, D8R, D8T models. The Cat D8 heavy dozers are widely deployed in large-scale mining site preparation, heavy rock & earth moving, highway subgrade construction, landfill operation and massive stockpile pushing. Compared with D7, D8 features larger SU semi-universal blade and heavy-duty U blade, so this cutting edge assembly adopts extra-thick high-strength steel plate to withstand continuous heavy impact and extreme abrasive wear under severe rock and compacted soil conditions.

Our factory offer a diverse array of blade types including Boron steel dozer Cutting Edge,Manganese dozer Cutting Edge,Carbon steel dozer Cutting Edge,Boron steel dozer End Bit,Manganese dozer End Bit,Carbon steel dozer End Bit,you can select material & hardness by working condition.

Our high-quality aftermarket D8 cutting edge and end bits replacements are compatible with Caterpillar D8 series dozers, including SU semi-universal blade, U universal blade, LGP low ground pressure blade and angle blade. They are suitable for massive earthmoving, heavy highway subgrade construction, mine site clearing & levelling, rock stockpile handling, landfill compaction & pushing, heavy slope shaping, compacted hard soil and mixed rock-soil severe working conditions.

Welcome to contact us for more detailed information : we promise that every batch undergoes hardness testing, flatness calibration and hole position inspection. Depend on stable quality, reasonable price and reliable lead time , we win more and more global customers's recognize and long-term orders !

Part number Alternative number Description Dimension Hole
4T2943 4T-2943 Center 0.750 x 10.000 x 63.875 16
4T3419 4T-3419 Center 1.000 x 10.000 x 47.750 12
4T2861 4T-2861 End 1.000 x 10.000 x 35.750 9
4T2888 4T-2888 Heavy Duty Center 1.000 x 10.000 x 63.875 16
3G8313 3G-8313 Hot Cup End Bit RH 1.125 x 11.875 x 17.625 7
3G8314 3G-8314 Hot Cup End Bit LH 1.125 x 11.875 x 17.625 7
4T6667 4T-6667 Level Cut End Bit RH 1.000 x 10.000 x 16.000 7
4T6668 4T-6668 Level Cut End Bit LH 1.000 x 10.000 x 16.000 7
4T2944 4T-2944 Center 0.750 x 10.000 x 51.875 13
4T2860 4T-2860 Heavy Duty Center 1.000 x 10.000 x 51.875 13
4T2862 4T-2862 Center 1.000 x 10.000 x 55.875 14
3G8311 3G-8311 Hot Cup End Bit RH 1.125 x 12.000 x 18.125 7
3G8312 3G-8312 Hot Cup End Bit LH 1.125 x 12.000 x 18.125 7
4T6671 4T-6671 Level Cut End Bit RH 1.000 x 10.000 x 15.875 7
4T6672 4T-6672 Level Cut End Bit LH 1.000 x 10.000 x 15.875 7
9W6199 9W-6199 1 1 " Hot Cupped End Bit RH 1.375 x 13.000 x 24.000 7
9W6198 9W-6198 1 1 " Hot Cupped End Bit LH 1.375 x 13.000 x 24.000 7
1050575 105-0575 1 1 " Level Cut End Bit RH 1.375 x 10.500 x 18.000 7
1050574 105-0574 1 1 " Level Cut End Bit LH 1.375 x 10.500 x 18.000 7
1050577 105-0577 1 1 " Level Cut End Bit RH 1.750 x 10.500 x 18.000 7
1050576 105-0576 1 1 " Level Cut End Bit LH 1.750 x 10.500 x 18.000 7
3G8285EWL 3G-8285EWL End Bit (Long Side) RH 1.625 x 15.110 x 21.572 7
3G8286EWL 3G-8286EWL End Bit (Long Side) LH 1.625 x 15.110 x 21.572 7
1073477 107-3477 Extra Heavy Duty Center 1.750 x 10.000 x 59.750 10
1073476 107-3476 Extra Heavy Duty Center 1.750 x 10.000 x 60.250 10
3G8299 3G-8299 Hot Cup End Bit RH 1.250 x 13.000 x 21.625 7
3G8300 3G-8300 Hot Cup End Bit LH 1.250 x 13.000 x 21.625 7
3G8277 3G-8277 Hot Cup End Bit RH 1.625 x 13.000 x 22.000 7
3G8278 3G-8278 Hot Cup End Bit LH 1.625 x 13.000 x 22.000 7
4T6669 4T-6669 Level Cut End Bit RH 1.000 x 10.000 x 15.375 7
4T6670 4T-6670 Level Cut End Bit LH 1.000 x 10.000 x 15.375 7
7J2975 7J-2975 Level Cut End Bit RH 1.625 x 10.000 x 15.375 7
7J2976 7J-2976 Level Cut End Bit LH 1.625 x 10.000 x 15.375 7
