Products information 1)Idler roller body material: 35Mn/35MnB/40Cr/#45Carbon steel 2)Surface hardness: HRC52-60 ;Hardened layer:5~7mm; 3)Shaft material: 40Cr/42CrMo 4)Shaft Hardness: HRC54-60,Hardened layer:2~4mm; 5)Tensile Strength:≥600MPa;Yield Strength:≥350MPa; 6)Impact Toughness: ≥30J/cm2（normal temperature） 7)Package: packed in strong pallets 8)Application: idlers guide the track in and out of the track rollers. They intermittently support the machine's weight and provide a way to c

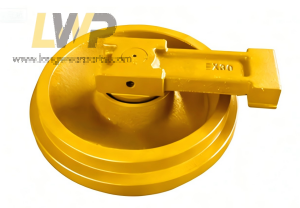

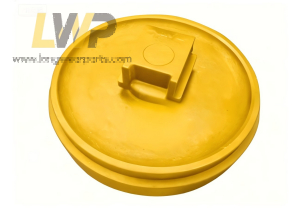

Long wear parts@ supply high quality Doosan Front Idler/Doosan Idler Group/ Doosan Track Idler/Doosan Idler Wheel/Doosan Idler Roller.
Long wear parts@ idler wheel is forged from high-quality alloy steels—such as 35Mn, 35MnB, or 40Cr—offering exceptional strength and toughness to resist fracture.
The wheel tread undergoes intermediate-frequency induction hardening, achieving a hardness of HRC 52–60; the hardened layer is uniform, ensuring excellent wear resistance without spalling.
Precision machining ensures superior coaxiality, resulting in smooth, vibration-free operation that minimizes track wear.
The wheel body features an optimized structural design that provides excellent resistance to both impact and fatigue, ensuring stable performance even under the heavy-load conditions typical of mining operations.
Reliable sealing effectively prevents the ingress of dust and water, thereby extending the service life of the internal bearings and bushings.
Long wear parts@idler groups are compatible with Caterpillar(CAT) /Komatsu /ESCO /Sany /Doosan/ Hyundai/ Hitachi/ Liebherr/ Hensley /VOLVO/ Liugong/ Xugong/ MTG/JCB/H&L/Combi/ Case/John deere/Kobelco/Fiat/Sumitomo/ Bobcat/Samsung machines and so on.
Model
Part number
Alternative No.
Description
S170,S175LC-V
22704002
2270-4002
Doosan Track Roller
DX35Z
20010200101
200102-00101
Doosan Track Roller
DX55,S55
20010200029A
200102-00029A
Doosan Track Roller
DX80,S70-VS
22706125A
2270-6125A
Doosan Track Roller
SOLAR140LC-V,S140LCV
K1000779A
K1000779A
Doosan Track Roller
DX200,DX225
20010200052
200102-00052
Doosan Track Roller
DX225LCA,DX200A,DX220A
20010200022B
200102-00022B
Doosan Track Roller
S220LC-3
22706098B
2270-6098B
Doosan Track Roller
DH215-9,DH215-9E,DH220LC-9
20010200055
200102-00055
Doosan Track Roller
DX225LL,DX300LCA,DX340LCA
20010200001A
200102-00001A
Doosan Track Roller
DX380LC-3,5, DX420LCA
20010200020
200102-00020
Doosan Track Roller
DX480LCA,DX500LCA, DX520LCA
20010200002A
200102-00002A
Doosan Track Roller
