Products information 1)Idler roller body material: 35Mn/35MnB/40Cr/#45Carbon steel 2)Surface hardness: HRC52-60 ;Hardened layer:5~7mm; 3)Shaft material: 40Cr/42CrMo 4)Shaft Hardness: HRC54-60,Hardened layer:2~4mm; 5)Tensile Strength:≥600MPa;Yield Strength:≥350MPa; 6)Impact Toughness: ≥30J/cm2（normal temperature） 7)Package: packed in strong pallets 8)Application: idlers guide the track in and out of the track rollers. They intermittently support the machine's weight and provide a way to c

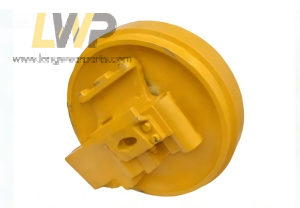

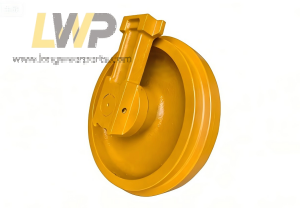

Long wear parts@ supply high quality Komatsu Front Idler/Komatsu Idler Group/ Komatsu Track Idler/ Komatsu Idler Wheel/ Komatsu Idler Roller.
Long wear parts@ idler wheel is forged from high-quality alloy steels—such as 35Mn, 35MnB, or 40Cr—offering exceptional strength and toughness to resist fracture.
The wheel tread undergoes intermediate-frequency induction hardening, achieving a hardness of HRC 52–60; the hardened layer is uniform, ensuring excellent wear resistance without spalling.
Precision machining ensures superior coaxiality, resulting in smooth, vibration-free operation that minimizes track wear.
The wheel body features an optimized structural design that provides excellent resistance to both impact and fatigue, ensuring stable performance even under the heavy-load conditions typical of mining operations.
Reliable sealing effectively prevents the ingress of dust and water, thereby extending the service life of the internal bearings and bushings.
Long wear parts@idler groups are compatible with Caterpillar(CAT) /Komatsu /ESCO /Sany /Doosan/ Hyundai/ Hitachi/ Liebherr/ Hensley /VOLVO/ Liugong/ Xugong/ MTG/JCB/H&L/Combi/ Case/John deere/Kobelco/Fiat/Sumitomo/ Bobcat/Samsung machines and so on.
Model
Part number
Alternative No.
Description
D60E, D60F, D60P, D60PL, D60S, D65A, D65E,
D65P, D65S, D68E, D68P, D70LE, D75A
144-30-00036
1443000036
Komatsu Idler Group
D60E, D60F, D60P, D60PL, D60S, D65A, D65E,
D65P, D65S, D68E, D68P, D70LE, D75A
144-30-00037
1443000037
Komatsu Idler Group
D60-6,D65,D70,
144-30-00038
1443000038
Komatsu Idler Group
D60-6,D65,D70,
141-30-33111
1413033111
Komatsu Idler Group
D60E, D60F, D60P, D60PL, D60S, D65A, D65E,
D65P, D65S, D68E, D68P, D70LE, D75A
144-30-00039
1443000039
Komatsu Idler Group
D60E, D60F, D60P, D60PL, D60S, D65A, D65E,
D65P, D65S, D68E, D68P, D70LE, D75A
141-30-00538
1413000538
Komatsu Idler Group
D60,D70,D85
14X-30-00110
14X3000110
Komatsu Idler Group
D60,D70,D85
14X-30-00111
14X3000111
Komatsu Idler Group
D65E-12/ D85SS-2/ D85ESS-12
14X-30-00112
14X3000112
Komatsu Idler Group
D65E-12/ D85SS-2/ D85ESS-12
14X-30-00113
14X3000113
Komatsu Idler Group
D60,D70,D85
14X-30-00114
14X3000114
Komatsu Idler Group
D60,D70,D85
14X-30-00115
14X3000115
Komatsu Idler Group
D60,D70,D85
14X-30-00116
14X3000116
Komatsu Idler Group
D60,D70,D85
14X-30-00117
14X3000117
Komatsu Idler Group
