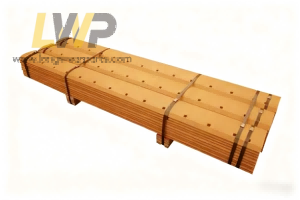

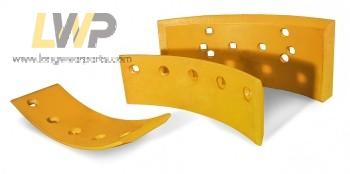

Products information 1)Material: Carbon steel 2)Surface: yellow paint or gray paint or as your request 3)Hardness: HB280-320 4)Technique: forging, machining, heat treatment 5) Package: strong plywood pallet 6) Application :used in a wide variety of applications across all Caterpillar,Komatsu , Shantui graders,bulldozers,loader buckets .Multiple edge models to match your applications and job site's needs .
Edge selection is critical for enhancing production and keeping cost to a minimum. Application affects the cutting edge shape, metallurgy and style. Impact, penetration and abrasion define your application environment. An edge has to penetrate the material and not break during operation. Edge life then becomes a matter of metallurgy and thickness.
Long wear parts product line includes a comprehensive array of Caterpillar snow plow blade, Caterpillar Curved Serrated blade, Caterpillar grader blade,Caterpillar grader end bit,Caterpillar overlay compatible with all makes and models of Caterpillar machines .
Part number
Alternative number
Description
Dimension
Hole
9W2327
9W-2327
5 Foot
0.625 x 6.000 x 60.000
7
7T1637
7T-1637
6 Foot
0.625 x 6.000 x 72.000
8
7T1626
7T-1626
7 Foot
0.625 x 6.000 x 84.000
9
7T1629
7T-1629
8 Foot
0.625 x 6.000 x 96.000
10
9W2329
9W-2329
4 Foot
0.625 x 8.000 x 48.000
6
9W2330
9W-2330
5 Foot
0.625 x 8.000 x 60.000
7
7T1639
7T-1639
6 Foot
0.625 x 8.000 x 72.000
8
7T1624
7T-1624
7 Foot
0.625 x 8.000 x 84.000
9
7T1628
7T-1628
8 Foot
0.625 x 8.000 x 96.000
10
9W2332
9W-2332
4 Foot
0.750 x 6.000 x 48.000
6
9W2333
9W-2333
5 Foot
0.750 x 6.000 x 60.000
7
9W2334
9W-2334
6 Foot
0.750 x 6.000 x 72.000
8
9W2335
9W-2335
7 Foot
0.750 x 6.000 x 84.000
9
9W2337
9W-2337
8 Foot
0.750 x 6.000 x 96.000
10
9W2339
9W-2339
4 Foot
0.750 x 8.000 x 48.000
6
9W2341
9W-2341
5 Foot
0.750 x 8.000 x 60.000
7
7T1638
7T-1638
6 Foot
0.750 x 8.000 x 72.000
8
7T1625
7T-1625
7 Foot
0.750 x 8.000 x 84.000
9
7T1627
7T-1627
8 Foot
0.750 x 8.000 x 96.000
10
