Products information 1)Material: Carbon steel or Manganese steel or boron steel 2)Surface: yellow paint or gray paint or as your request 3)Hardness: HB280-500 or HB320~360 or HB440~500 4)Technique: forging, machining, heat treatment 5) Package: strong plywood pallet 6) Application :used in a wide variety of applications across all Caterpillar,Komatsu , Shantui graders,bulldozers,loader buckets .Multiple edge models to match your applications and job site's needs .

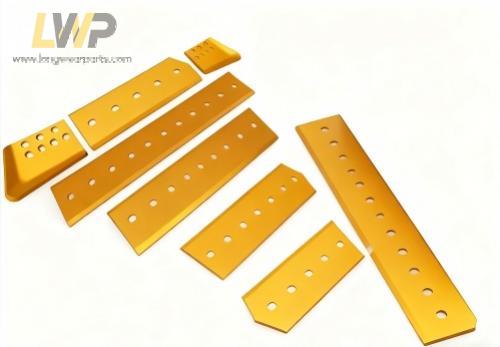

Long wear parts product line includes a comprehensive array of Cutting edge, Segment ,Half arrow,Spade Nose Base Edge,Protector compatible with all makes and models of Caterpillar loaders .
Long wear parts supply full range of bolt-on and weld-in blades , edge design includes Single bevel flat edge(SBF), Wide Bevel flat edge(WBF),Double bevel flat edge(DBF).
Part number
Alternative number
Description
Dimension
Hole
7T5962
7T-5962
Center
1.180 x 14.170 x 20.875
4
7T5963
7T-5963
Center RH
1.180 x 14.170 x 28.438
4
7T5960
7T-5960
End RH
1.180 x 14.170 x 24.625
4
7T5961
7T-5961
Center LH
1.180 x 14.170 x 28.438
4
7T5964
7T-5964
End RH
1.180 x 14.170 x 24.625
4
4T3015
4T-3015
Segment
1.180 x 14.170 x 10.125
2
4T9123
4T-9123
Segment RH
1.180 x 14.170 x 14.000
2
4T9124
4T-9124
Segment LH
1.180 x 14.170 x 14.000
2
1321038
132-1038
HD Segment
1.375 x 14.250 x 10.125
2
1321039
132-1039
HD Segment RH
1.375 x 14.250 x 14.000
2
1321040
132-1040
HD Segment LH
1.375 x 14.250 x 14.000
2
1321035
132-1035
HD Center Segment
1.375 x 11.000 x 8.860
2
1321036
132-1036
HD End Segment
1.375 x 11.000 x 8.250
2
4T6694HA
4T-6694HA
HA Segment (Cast)
1.375 x 10.875 x 9.000
2
4T6693HA
4T-6693HA
HA Segment (Cast)
1.375 x 10.875 x 8.250
2
1414847
141-4847
Base Edge With Segment Holes
1.250 x 11.130 x 113.620
30
5V4696
5V-4696
Base Edge For Bolt-on Edges or Teeth
1.250 x 11.125 x 107.750
18
