Products information 1)Material: Carbon steel or Manganese steel or boron steel 2)Surface: yellow paint or gray paint or as your request 3)Hardness: HB280-500 or HB320~360 or HB440~500 4)Technique: forging, machining, heat treatment 5) Package: strong plywood pallet 6) Application :used in a wide variety of applications across all Caterpillar,Komatsu , Shantui graders,bulldozers,loader buckets .Multiple edge models to match your applications and job site's needs .
Long wear parts product line includes a comprehensive array of cutting edges & end bits compatible with all makes and models of bulldozers .Long wear parts offer a diverse array of blade types including Boron steel dozer Cutting Edge,Manganese dozer Cutting Edge,Carbon steel dozer Cutting Edge,Boron steel dozer End Bit,Manganese dozer End Bit,Carbon steel dozer End Bit .
Part number

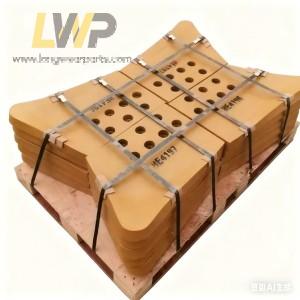

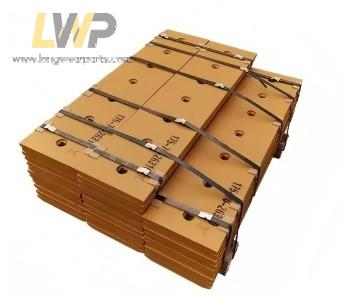

Alternative number
Description
Dimension
Hole
8E4199HC
8E-4199HC
Hot Cup End Bit RH
2.000 x 19.000 x 29.000
7
8E4198HC
8E-4198HC
Hot Cup End Bit LH
2.000 x 19.000 x 29.000
7
8E4541HC
8E-4541HC
Hot Cup End Bit RH
2.250 x 19.000 x 29.000
7
8E4542HC
8E-4542HC
Hot Cup End Bit LH
2.250 x 19.000 x 29.000
7
7T4689
7T-4689
Hot Cup End Bit RH
2.500 x 18.000 x 27.594
7
7T4688
7T-4688
Hot Cup End Bit LH
2.500 x 18.000 x 27.500
7
7T4689-24
7T-4689-24
Hot Cup End Bit RH
3.000 x 18.000 x 27.500
7
7T4688-24
7T-4688-24
Hot Cup End Bit LH
3.000 x 18.000 x 27.500
7
1003131
100-3131
Level Cut End Bit RH
1.750 x 16.000 x 27.000
7
1003132
100-3132
Level Cut End Bit LH
1.750 x 16.000 x 27.000
7
1003133
100-3133
Level Cut End Bit RH
2.375 x 16.000 x 27.000
7
1003134
100-3134
Level Cut End Bit LH
2.375 x 16.000 x 27.000
7
1368755
136-8755
Level Cut End Bit RH
3.000 x 14.250 x 27.000
7
1368754
136-8754
Level Cut End Bit LH
3.000 x 14.250 x 27.000
7
2238149
223-8149
Carbide Impreg Center
2.375 x 16.000 x 33.375
5
1959170
195-9170
Carbide Impreg End RH
2.375 x 16.000 x 33.813
5
2011230
201-1230
Carbide Impreg End LH
2.375 x 16.000 x 33.813
5
1957173
195-7173
Carbide Impreg Hot Cup End Bit RH
2.250 x 19.000 x 29.000
7
1957174
195-7174
Carbide Impreg Hot Cup End Bit LH
2.250 x 19.000 x 29.000
7
1250800
125-0800
Sidebar Protector
2.750 x 8.500 x 40.000
2
1359793
135-9793
Weld on HA Edge Segment
8E6867-12
8E-6867-12
Dozer Blade Support
1.500 x 11.471 x 101.000
15
8E5080-12
8E-5080-12
Dozer Blade/End Bit Support
1.500 x 11.417 x 60.500
12
