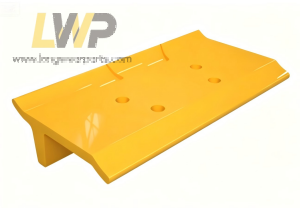

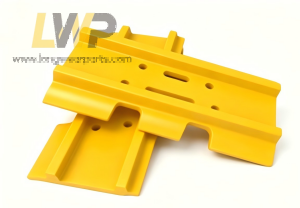

Caterpillar Track Pad/Grouser Shoe 1V4630/8K2276/206-3517

Products information
1)Track Shoe material: High-Manganese Wear-Resistant Alloy Steel
2)Surface hardness: HB 320–380, impact-resistant, flex-resistant ;
3)Package: packed in strong pallets
4)Application: Track shoes provide flotation and traction for the machine and protection for the link assembly.

Product Description:

Long wear parts@ supply high quality Caterpillar Track Shoe, Caterpillar Track Pad, Caterpillar Grouser Shoe,Caterpillar Master Shoe, Caterpillar Track Plate,Caterpillar Teja Empalme, Caterpillar Connector.

We offer four types of track shoes:

1. Single Grouser Track Shoes: Offer maximum traction and excellent resistance to sinking; suitable for bulldozers, wetlands, swamps, and steep slopes. Not recommended for use on paved surfaces or in applications involving frequent turning.

2. Double Grouser Track Shoes: Provide a balanced combination of performance and durability, making them suitable for general-purpose applications across various conditions. Not recommended for use in ultra-soft silt or extremely hard rock environments.

3. Triple Grouser Track Shoes: Feature high load-bearing capacity, offer the smoothest ride, and provide superior resistance to sinking; suitable for large excavators, hard rock mining sites, and wetlands. Not recommended for applications requiring extreme traction or for use on bulldozers.

4. Flat Track Shoes: Protect the ground surface and ensure a smooth ride; suitable for urban environments and concrete pavements. Not recommended for use in muddy conditions, soft ground, or on slopes.

Long wear parts@ Caterpillar Track Shoe Shoe,Caterpillar Teja Empalme are available various models, can fit Caterpillar(CAT) /Komatsu /ESCO /Sany /Doosan/ Hyundai/ Hitachi/ Liebherr/ Hensley /VOLVO/ Liugong/ Xugong/ MTG/JCB/H&L/Combi/ Case/John deere/Kobelco/Fiat/Sumitomo/ Bobcat/Samsung equipments.


Model Part number Alternative No. Width Description
D4E 69X-1-UP,D4E 28X-1-UP 1V4630 1V-4630 330mm Caterpillar Track Shoe
D4E LGP 8K2276 8K-2276 762mm Caterpillar Track Shoe
D4E LGP 2063514 206-3514 762mm Caterpillar Track Shoe
D4E 2063517 206-3517 406mm Caterpillar Track Shoe
D4E 2063519 206-3519 508mm Caterpillar Track Shoe
1B D4 1V4616 1V-4616 508mm Caterpillar Track Shoe
D4E LGP 1V4618 1V-4618 762mm Caterpillar Track Shoe
D4D 1V4619 1V-4619 762mm Caterpillar Track Shoe
D4E 1V4627 1V-4627 406mm Caterpillar Track Shoe
D4H,54H 3T0356 3T-0356 360mm Caterpillar Track Shoe
D4H, D4HTSK 3T0358 3T-0358 410mm Caterpillar Track Shoe
D6C 3T2340 3T-2340 600mm Caterpillar Track Shoe
215 3T3646 3T-3646 705mm Caterpillar Track Shoe
215 3T3647 3T-3647 610mm Caterpillar Track Shoe
215 3T3648 3T-3648 500mm Caterpillar Track Shoe
D6D 7S9565 7S-9565 508mm Caterpillar Track Shoe
D5 LGP 12R-1-121 7S9567 7S-9567 864mm Caterpillar Track Shoe
D5B 5S0820 5S-0820 406mm Caterpillar Track Shoe
D6D 1P2062 1P-2062 915mm Caterpillar Track Shoe
D6D 6Y6301 6Y-6301 915mm Caterpillar Track Shoe
