Products information 1)Material: Carbon steel or Manganese steel or boron steel 2)Surface: yellow paint or gray paint or as your request 3)Hardness: HB280-320 or HB320~360 or HB440~500 4)Technique: forging, machining, heat treatment 5) Package: strong plywood pallet 6) Application :used in a wide variety of applications across all Caterpillar,Komatsu , Shantui graders,bulldozers,loader buckets .Multiple edge models to match your applications and job site's needs .
Long wear parts product line includes a comprehensive array of Caterpillar snow plow blade, Caterpillar grader blade,Caterpillar grader end bit,Caterpillar overlay compatible with all makes and models of Caterpillar machines .

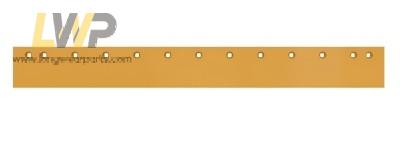

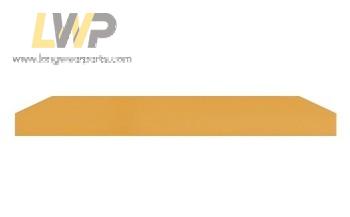

Long wear parts supply edge design includes Double bevel curved and Double bevel flat available from 13mm to 25mm thick ,we also accept customized parts .
Part number
Alternative number
Description
Dimension
Hole
4T2967
4T-2967
5 Foot
0.625 x 8.000 x 60.000
11
4T2968
4T-2968
6 Foot
0.625 x 8.000 x 72.000
13
4T2969
4T-2969
7 Foot
0.625 x 8.000 x 84.000
15
4T2966
4T-2966
8 Foot
0.625 x 8.000 x 96.000
17
4Z8129-6
4Z-8129-6
3 Foot
0.750 x 8.000 x 36.000
7
4Z8129
4Z-8129
3 Foot on 12" Centers
0.750 x 8.000 x 36.000
5
4Z8119-6
4Z-8119-6
4 Foot
0.750 x 8.000 x 48.000
9
4Z8119
4Z-8119
4 Foot on 12" Centers
0.750 x 8.000 x 48.000
6
4T3034
4T-3034
5 Foot
0.750 x 8.000 x 60.000
11
4T3007
4T-3007
6 Foot
0.750 x 8.000 x 72.000
13
4T3036
4T-3036
7 Foot
0.750 x 8.000 x 84.000
15
4T3035
4T-3035
8 Foot
0.750 x 8.000 x 96.000
17
1359692
135-9692
4 Foot
1.000 x 8.000 x 48.000
9
7T3497
7T-3497
5 Foot
1.000 x 8.000 x 60.000
11
7T3499
7T-3499
6 Foot
1.000 x 8.000 x 72.000
13
7T3498
7T-3498
7 Foot
1.000 x 8.000 x 84.000
15
7T3496
7T-3496
8 Foot
1.000 x 8.000 x 96.000
17
