Products information 1)Idler roller body material: 35Mn/35MnB/40Cr/#45Carbon steel 2)Surface hardness: HRC52-60 ;Hardened layer:5~7mm; 3)Shaft material: 40Cr/42CrMo 4)Shaft Hardness: HRC54-60,Hardened layer:2~4mm; 5)Tensile Strength:≥600MPa;Yield Strength:≥350MPa; 6)Impact Toughness: ≥30J/cm2（normal temperature） 7)Package: packed in strong pallets 8)Application: idlers guide the track in and out of the track rollers. They intermittently support the machine's weight and provide a way to c
Long wear parts@ supply high quality Hyundai Front Idler/Hyundai Idler Group/ Hyundai Track Idler/Hyundai Idler Wheel/Hyundai Idler Roller.

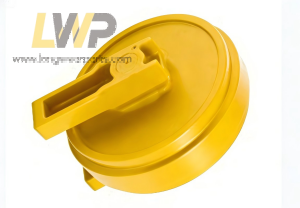

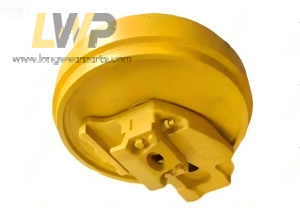

Long wear parts@ idler wheel is forged from high-quality alloy steels—such as 35Mn, 35MnB, or 40Cr—offering exceptional strength and toughness to resist fracture.
The wheel tread undergoes intermediate-frequency induction hardening, achieving a hardness of HRC 52–60; the hardened layer is uniform, ensuring excellent wear resistance without spalling.
Precision machining ensures superior coaxiality, resulting in smooth, vibration-free operation that minimizes track wear.
The wheel body features an optimized structural design that provides excellent resistance to both impact and fatigue, ensuring stable performance even under the heavy-load conditions typical of mining operations.
Reliable sealing effectively prevents the ingress of dust and water, thereby extending the service life of the internal bearings and bushings.
Long wear parts@idler groups are compatible with Caterpillar(CAT) /Komatsu /ESCO /Sany /Doosan/ Hyundai/ Hitachi/ Liebherr/ Hensley /VOLVO/ Liugong/ Xugong/ MTG/JCB/H&L/Combi/ Case/John deere/Kobelco/Fiat/Sumitomo/ Bobcat/Samsung machines and so on.
Model
Part number
Alternative No.
Description
R450LC-3,R450LC-7,R500LC-7
81E7-01030
81E701030
Hyundai Idler Assy
R450LC-7,R450LC-7A,R500LC-7
81E7-01030BG
81E701030BG
Hyundai Idler Assy
R450LC-7,R450LC-7A,R500LC-7
81E7-01031BG
81E701031BG
Hyundai Idler Assy
R450LC-7,R450LC-7A,R500LC-7
81QB-13011BG
81QB13011BG
Hyundai Idler Assy
R480LC-9
81E7-01031GG
81E701031GG
Hyundai Idler Assy
R480LC-9,R520LC-9
81QB-13011
81QB13011
Hyundai Idler Assy
R520LC-9
81QB-13010
81QB13010
Hyundai Idler Assy
R500/R555MVP
81M5-53000B
81M553000B
Hyundai Idler Assy
R500/R555MVP
81M5-53000
81M553000
Hyundai Idler Assy
R800LC-7A
81ND-13010
81ND13010
Hyundai Idler Assy
CCrawler Dozer H70,H70LGP
85D1-70010
85D170010
Hyundai Idler Assy
CCrawler Dozer H80,H80LGP
82D2-70010
82D270010
Hyundai Idler Assy
