Products information 1) Material: 40Cr or 42CrMo 2) Surface: black oxygen, galvanization or as your request 3) Hardness: 36~42HRC 4) Grade: 10.9, 12.9 5) Impact Strength: ≥12~15J (at 25°C) 6) Package: boxes packed in Plywood Cases 7) Application :used in a wide variety of applications across all Caterpillar machinery,they are used to secure the track plates to the undercarriage frame of heavy machinery like excavators, bulldozers, and tracked loaders.

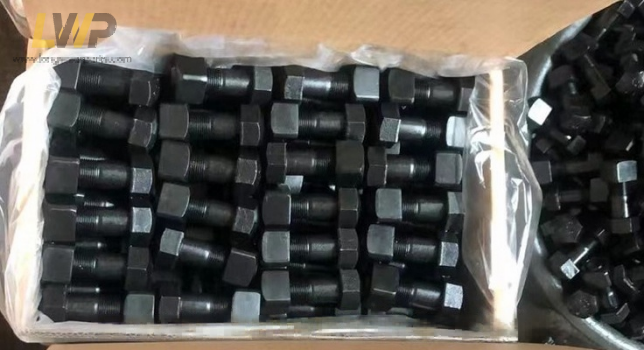

Our aftermarket Caterpillar track bolts are high-strength fasteners for undercarriage systems, they are always paired with track nuts to secure track shoes onto track links,and widely used on Caterpillar excavators, dozers and wheel loaders. The track system endures heavy impact loads, alternating shear force, abrasive wear and mud-water corrosion during operation. Therefore, track bolts require outstanding tensile strength, shear resistance and fatigue life.
Our aftermarket Caterpillar track bolts are manufactured to match OEM part numbers. Dimensions, thread profile and head geometry are fully compatible for direct replacement. Except standard track bolt, we also supply high head track bolt ,short shank track bolt and flange track bolt. All of them are made of premium alloy steel with precision heat treatment for stable mechanical performance. Threads are roll-formed to avoid cutting marks at thread root, delivering superior fatigue resistance and reducing thread breakage risk.
Installation Tips:
1. Clean dirt and rust on contact surfaces of track shoes and links before installation for flat contact.
2. Track bolt and nut strength class must be matched. Mixing different grades is not recommended.
3. Tighten to torque values specified in machine service manual. Insufficient torque causes loosening; over-torque leads to bolt stretch and fracture.
4. Periodic torque recheck is recommended for machines working under heavy mining impact conditions.
5. Replace all track bolts and nuts together while changing track shoes. Used bolts suffer cyclic load and metal fatigue, which increases breakage risk for reuse.
Thank you for your interest in our aftermarket Caterpillar track bolts replacement. To quote precisely, please share your track bolt part number or track shoe OEM part number, track bolt strength class, surface finish and priority material for quotation. I can send you prices and lead time immediately.
|
Bolt Diameter |
Part number | Description | Dimension | Length | Thread |
| 7/8 | 9M7444 | Track Bolt | 7/8 | 2 1/2 | 14-UNF |
| 7H3599 | Track Bolt | 7/8 | 2 21/32 | 14-UNF | |
| 188-5639 | Track Bolt | 7/8 | 2 21/32 | 14-UNF | |
| 1H4215 | Track Bolt | 7/8 | 2 3/4 | 14-UNF | |
| 200-9125 | Track Bolt | 7/8 | 3 | 14-UNF | |
| 7T2748 | Track Bolt | 7/8 | 3 11/32 | 14-UNF | |
| 6V1723 | Track Bolt | 7/8 | 3 27/64 | 14-UNF | |
| 7H3609 | Track Nut Hex | 7/8 | 14-UNF | ||
| 2S2140 | Track Nut Sq | 7/8 | 14-UNF | ||
| 188-5857 | Track Nut Sq | 7/8 | 14-UNF | ||
| 1B4435 | Track Nut Sq | 7/8 | 14-UNF | ||
| 7T9825 | Spl Track Nut | 7/8 | 14-UNF | ||
| 200-9152 | Spl Track Nut | 7/8 | 14-UNF | ||
| 7G6442 | Track Nut Sp Sq | 7/8 | 14-UNF | ||
| 1 | 2M5657 | Track Bolt | 1 | 2 15/16 | 14-UNF |
| 9M7445 | Track Bolt | 1 | 2 15/16 | 14-UNF | |
| 3T6308 | Track Bolt | 1 | 3 9/64 | 14-UNF | |
| 6T2638 | Track Bolt | 1 | 3 35/64 | 14-UNF | |
| 6V1726 | Track Bolt | 1 | 3 13/16 | 14-UNF | |
| 2M5656 | Track Nut Hex | 1 | 14-UNF | ||
| 1S6421 | Track Nut Sq | 1 | 14-UNF | ||
| 200-9129 | Track Nut Sq | 1 | 14-UNF | ||
| 2V0250 | Track Nut Sq | 1 | 14-UNF | ||
| 7G0343 | Track Nut Sp Sq | 1 | 14-UNF | ||
| 1 1/8 | 7T1000 | Track Bolt | 1 1/8 | 3 3/4 | 12-UNF |
| 5P8221 | Track Nut Sq | 1 1/8 | 12-UNF | ||
| 1.375 | 6T8853 | Track Bolt | 1 3/8 | 4 1/4 | |
| 3T6292 | Track Nut Sq | 1 3/8 |
