Products information 1)Material: Carbon steel or Manganese steel or boron steel 2)Surface: yellow paint or gray paint or as your request 3)Hardness: HB280-320 or HB320~360 or HB440~500 4)Technique: forging, machining, heat treatment 5) Package: strong plywood pallet 6) Application :used in a wide variety of applications across all Caterpillar,Komatsu , Shantui graders,bulldozers,loader buckets .Multiple edge models to match your applications and job site's needs .
Edge selection is critical for enhancing production and keeping cost to a minimum. Application affects the cutting edge shape, metallurgy and style. Impact, penetration and abrasion define your application environment. An edge has to penetrate the material and not break during operation. Edge life then becomes a matter of metallurgy and thickness.

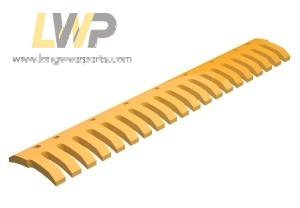

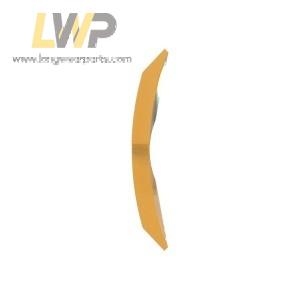

Long wear parts product line includes a comprehensive array of Caterpillar snow plow blade, Caterpillar Curved Serrated blade, Caterpillar grader blade,Caterpillar grader end bit,Caterpillar overlay compatible with all makes and models of Caterpillar machines .
Part number
Alternative number
Description
Dimension
Hole
8D3428
8D-3428
4 Foot
0.750 x 8.000 x 48.000
9
8D3429
8D-3429
5 Foot
0.750 x 8.000 x 60.000
11
1321072
132-1072
6 Foot
0.750 x 8.000 x 72.000
13
4Z9020
4Z-9020
7 Foot
0.750 x 8.000 x 84.000
15
1321073
132-1073
8 Foot
0.750 x 8.000 x 96.000
17
8J8255
8J-8255
4 Foot
0.750 x 8.000 x 48.000
9
8J8256
8J-8256
5 Foot
0.750 x 8.000 x 60.000
11
4T3512
4T-3512
4 Foot
1.000 x 8.000 x 48.000
9
4T3511
4T-3511
5 Foot
