Products information 1)Idler roller body material: 35Mn/35MnB/40Cr/#45Carbon steel 2)Surface hardness: HRC52-60 ;Hardened layer:5~7mm; 3)Shaft material: 40Cr/42CrMo 4)Shaft Hardness: HRC54-60,Hardened layer:2~4mm; 5)Tensile Strength:≥600MPa;Yield Strength:≥350MPa; 6)Impact Toughness: ≥30J/cm2（normal temperature） 7)Package: packed in strong pallets 8)Application: idlers guide the track in and out of the track rollers. They intermittently support the machine's weight and provide a way to c

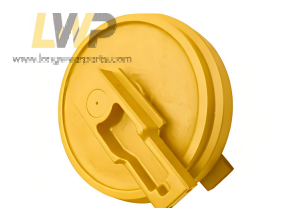

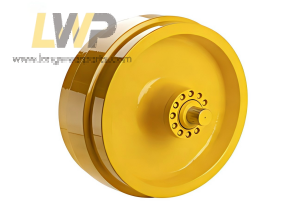

Long wear parts@ supply high quality Volvo Front Idler/Volvo Idler Group/ Volvo Track Idler/Volvo Idler Wheel/Volvo Idler Roller.
Our Idler Rollers have a high hardness level of HRC52-60. Our Long wear parts@ Idler Group Precisely Quenched for Maximum Durability—Resistant to Cracking and Deformation, Built to Withstand Both Mining and Earthmoving Operations.
Key Aspects of Our Long wear parts@ Front Idler Process:
Wheel Body: Forging/Roll Forging → Quenching and Tempering → Medium-Frequency Induction Hardening → Tempering
Wheel Axle: Quenching and Tempering → Medium-Frequency Hardening → Precision Grinding (Roughness Ra ≤ 0.8)
Long wear parts@ Idler Wheel are available various models, can fit Caterpillar(CAT) /Komatsu /ESCO /Sany /Doosan/ Hyundai/ Hitachi/ Liebherr/ Hensley /VOLVO/ Liugong/ Xugong/ MTG/JCB/H&L/Combi/ Case/John deere/Kobelco/Fiat/Sumitomo/ Bobcat/Samsung equipments.
Model
Part number
Alternative No.
Description
SE280/2,MX10-2,MX292,SE350
108100640
1081-00640
Volvo Front Idler
EC290 / MX295
118100721
1181-00721
Volvo Front Idler
EC360
108103910
1081-03910
Volvo Front Idler
SE450/EC460
108102222
1081-02222
Volvo Front Idler
EC210B-LC
14695200
VOE14695200
Volvo Front Idler
EC140, EC150B, EC160, EC180B, EC200, EC210,
EC210B, EC220D, EC235, EC240, EC240B, EC250
14533156
VOE14533156
Volvo Front Idler
EC330, EC360, EC380
14520695
VOE14520695
Volvo Front Idler
EC460LC, EC460LD, EC460LR, EC480HR, EC480L
14520609
VOE14520609
Volvo Front Idler
EC190, EC235, FC2924
14520821
VOE14520821
Volvo Front Idler
EC190, EC235, FC2924
14532537
VOE14532537
Volvo Front Idler
EC290,EC330, EC360, EC380
14542009
VOE14542009
Volvo Front Idler
EC360B-LC
14571720
VOE14571720
EC460LC, EC460LD, EC460LR, EC480HR, EC480L
14601735
VOE14601735
Volvo Front Idler
EC460LC, EC460LD, EC460LR, EC480HR, EC480L
14695230
VOE14695230
Volvo Front Idler
