Products information 1)Material: High chromium white iron with a mild steel weldable backing plate 1)Surface: grey/silver metallic or as your request 2)Hardness: 63-65HRC 3)Technique: casting , adopt vacuum brazed laminated 5) Package: strong plywood crate 6) Application : used in a wide variety of applications across Dragline/Shovel bucket protection, Loader/Excavator bucket protection,chute liners/rock box bars and Liners,Quarry and Mining grizzly screen,Shredder/Grinder tips, adapters
Long wear parts supply Wear Blocks for wear and impact Protection, inlcude chock block, chocky bar, wear button,wear donut,tungsten carbide wear plate,wear bar,grouser bar,grizzly bar,skid bar etc.

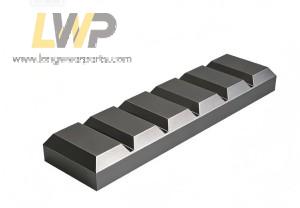

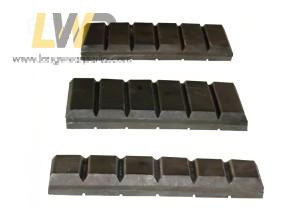

Wear Chocky Bars/chock block, use High chromium white iron with a mild steel weldable backing plate, adopt vacuum brazed laminated , make sure every white iron wear chocky bar/chock block ultra wear-resisting.
They are easy to use and install. They can be bent, cut and formed to suit different surfaces.
Part number
Alternative number
Dimension(mm)
Length
Width
Thickness
Description
C252
C-252
240x25x23
240
25
23
1.0 inch Chocky Bar
C402
C-402
240x40x23
240
40
23
1.5 inch Chocky Bar
C502
C-502
240x50x23
240
50
23
2.0 inch Chocky Bar
C652
C-652
240x65x23
240
65
23
2.5 inch Chocky Bar
C802
C-802
240x80x23
240
80
23
3.1 inch Chocky Bar
C902
C-902
240x90x23
240
90
23
3.5 inch Chocky Bar
C102
C-102
240x100x23
240
100
23
4.0 inch Chocky Bar
C132
C-132
240x130x23
240
130
23
5.0 inch Chocky Bar
C152
C-152
240x150x23
240
150
23
6 inch Chocky Bar
