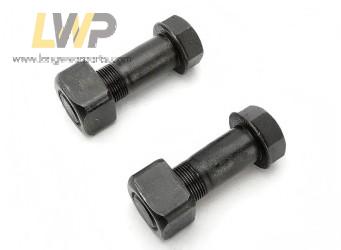

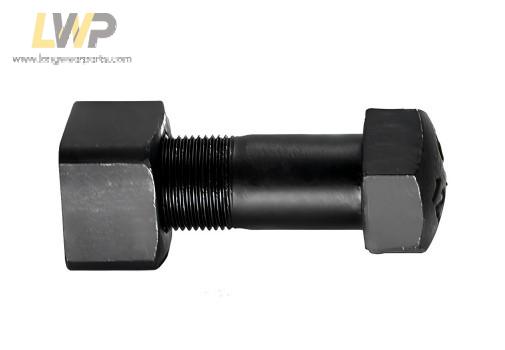

Products information 1) Material: 40Cr 2) Surface: black oxygen, galvanization or as your request 3) Hardness: 36~42HRC 4) Grade: 10.9, 12.9 5) Impact Strength: ≥12~15J (at 25°C) 6) Package: boxes packed in Plywood Cases 7) Application :used in a wide variety of applications across all Caterpillar machinery,they are used to secure the track plates to the undercarriage frame of heavy machinery like excavators, bulldozers, and tracked loaders.
We supply track bolt,split link bolt,segment bolt and nuts for Caterpillar, Komatsu, Hyundai,Volvo,JCB,Hitachi undercarriages. Our undercarriage spare parts and track systems are manufactured with the finest material for durability, reliability and practicality.
Bolt
Diameter
Part number
Description
Dimension
Length
Thread
M14
136-2401
Track Bolt
M14 (1.5) x 48
48mm
1.5 pitch
200-9104
Track Bolt
M14 (1.5) x 48
48mm
1.5 pitch
Track Bolt
M14 (1.5) x 56
56mm
1.5 pitch
136-2404
Track Nut Sq
M14 (1.5) x 14.7
14.7mm
1.5 pitch
200-9099
Track Nut Sq
M14 (1.5) x 14.7
14.7mm
1.5 pitch
M16
4I7538
Track Bolt
M16 (1.5) x 48
48mm
1.5 pitch
30104302
Track Bolt
M16 (1.5) x 48
48mm
1.5 pitch
096-1043
Track Bolt
M16 (1.5) x 57
57mm
1.5 pitch
218-3274
Track Bolt
M16 (1.5) x 57
57mm
1.5 pitch
093-0259
Track Bolt
M16 (1.5) x 65
65mm
1.5 pitch
5I6125
Track Nut Sq
M16 (1.5) x 16
16mm
1.5 pitch
M18
093-0262
Track Bolt
M18 (1.5) x 57
57mm
1.5 pitch
Track Bolt
M18 (1.5) x 64
64mm
1.5 pitch
093-0320
Track Nut Sq
M18 (1.5) X 19
19mm
1.5 pitch
188-5432
Track Nut Sq
M18 (1.5) X 19
19mm
1.5 pitch
M20
200-9146
Track Bolt
M20 (1.5) x 54
54mm
1.5 pitch
9W3619
Track Bolt
M20 (1.5) x 55
55mm
1.5 pitch
093-0266
Track Bolt
M20 (1.5) x 60
60mm
1.5 pitch
093-0321
Track Bolt
M20 (1.5) x 60
60mm
1.5 pitch
096-4300
Track Bolt
M20 (1.5) x 60
60mm
1.5 pitch
6Y0846
Track Bolt
M20 (1.5) x 63
63mm
1.5 pitch
200-9159
Track Bolt
M20 (1.5) x 65
65mm
1.5 pitch
200-91110
Track Bolt
M20 (1.5) x 68.5
68.5mm
1.5 pitch
093-0321
Track Nut Sq
M20 (1.5) x 25.0
25mm
1.5 pitch
200-9127
Track Nut Sq
M20 (1.5) x 25.0
25mm
1.5 pitch
9W3361
Track Nut Sq
M20 (1.5) x 20.3
20.3mm
1.5 pitch
