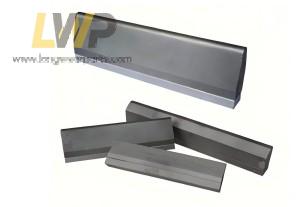

Bimetallic Shaped Wear Bars SWB275/SWB-275

Products information
1)Material: High chromium white iron with a mild steel weldable backing plate
1)Surface: grey/silver metallic or as your request
2)Hardness: 63-65HRC
3)Technique: casting , adopt vacuum brazed laminated
5) Package: strong plywood crate
6) Application : Earthmoving equipment and transhipment companies/Cement plants/Dredging industry/Recycling industry/Mineral processing industry

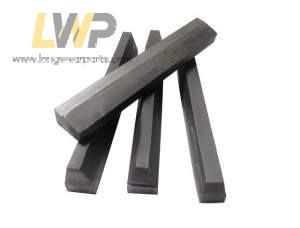

Long wear parts@ Shaped Wear Bars are available in different shapes to suit specific applications. Shaped Wear Bars can be used to replace conventional expensive hard facing and preparation, such as bucket lips, edges for bucket wheels and loaders as well as screens and crates in mineral processing and handling. Shaped Wear Bars offer superior wear life, edge and shape retention and are far more cost effective than conventional hard facing and cut lip protectors or shapes.

This Bi-metallic wear resistant product,as a combination of high Chromium cast iron(ASTMA53215/3CrMo,700BHN-63HRc) metallurgically bonded to a mild steel backing plate, obtains both very high abrasion resistance and weldability.

Part No	Alternative number	Size(mm)	Dimension
			A	B	C	D	E
SWB200	SWB-200	200x13x30	200	13	20	10	20
SWB244	SWB-244	244x10x35	244	10	25	10	25
SWB202	SWB-202	202x10x35	202	10	25	10	25
SWB275	SWB-275	275x5x29	275	5	21	8	16
SWB150	SWB-150	150x10x70	150	10	60	10	40
SWB200	SWB-200	200x25x59	200	3	47	12	59
SWB400	SWB-400	400x25x59	400	3	47	12	25
SWB125	SWB-125	125x10x90	125	10	80	10	90
SWB200-4	SWB-200-4	200x25x50	200	10	38	12	50
SWB400-4	SWB-400-4	400x25x50	400	10	38	12	50
