Products information 1)Material: High chromium white iron with a mild steel weldable backing plate 1)Surface: grey/silver metallic or as your request 2)Hardness: 63-65HRC 3)Technique: casting , adopt vacuum brazed laminated 5) Package: strong plywood crate 6) Application : used in chutes, hoppers, bins, liners, impact walls, rock boxes and a variety of other applications. Very easy to use, no need preheatment or post heating when welding.

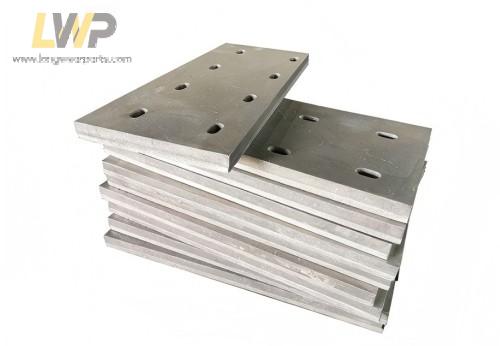

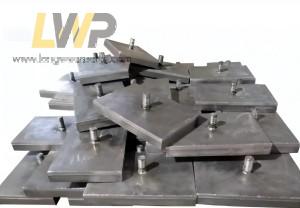

Bimetallic chrome white iron brazed wear plates
Material: Chrome white iron wear casting vacuum brazed onto mild steel base.
The smallest thickness for wear material we can make is 6mm.
Advantage:
1. Hardness: 63HRC/700BHN. The usage life is at least 2 times higher compared with overlay/hardfacing wear plates, at least 7 times longer than A.R type steels 360/400BHN. The thicker ones such as 20mm above wear, the usage life is much more longer. The wear resistance performance is the same from wear surface to the welding face.
2. Wear surface is very smooth and flat, media is not easy to stick on.
3. It can make with different shapes and sizes.
Type
Item No.
Size
Dimension(mm)
mm
A
B
C
D
E
Standard
WP 200-18
200x200x18
200
200
12
6
18
WP 200-20
200x200x20
200
200
14
6
20
WP 206
206x203x58
206
203
38
20
58
WP 250
250x250x20
250
250
14
6
20
WP 294A
294x144x30
294
144
20
10
30
WP 294B
294x294x30
294
294
20
10
30
WP 300H
300x148x50
300
148
40
10
50
WP 300A
300x150x20
300
150
14
6
20
WP 300C
300x150x25
300
150
19
6
25
WP 300E
300x150x30
300
150
20
10
30
WP 300C
300x300x18
300
300
12
6
18
WP 300B
300x300x20
300
300
14
6
20
WP 300D
300x300x25
300
300
19
6
25
WP 300F
300x300x30
300
300
20
10
30
WP 300G
300x300x50
300
300
40
10
50
WP 301
301x200x28
301
200
18
10
28
WP 305
305x150x24
305
150
18
6
24
WP 372
372x372x28
372
372
20
8
28
WP 445
445x445x25
445
445
19
6
25
Trapezoidal
WPt 190
190x212.5x25
190
212.5
17
8
25
WPt 241
241x290.5x30
241
290.5
22
8
30
