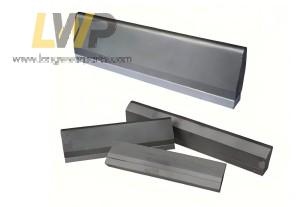

Bimetallic Shaped Wear Bars SWB2275/SWB-2275

Products information
1)Material: High chromium white iron with a mild steel weldable backing plate
1)Surface: grey/silver metallic or as your request
2)Hardness: 63-65HRC
3)Technique: casting , adopt vacuum brazed laminated
5) Package: strong plywood crate
6) Application : Earthmoving equipment and transhipment companies/Cement plants/Dredging industry/Recycling industry/Mineral processing industry

Long wear parts@ Shaped Wear Bars are available in different shapes to suit specific applications. Shaped Wear Bars can be used to replace conventional expensive hard facing and preparation, such as bucket lips, edges for bucket wheels and loaders as well as screens and crates in mineral processing and handling. Shaped Wear Bars offer superior wear life, edge and shape retention and are far more cost effective than conventional hard facing and cut lip protectors or shapes.

This Bi-metallic wear resistant product,as a combination of high Chromium cast iron(ASTMA53215/3CrMo,700BHN-63HRc)metallurgically bonded to a mild steel backing plate, obtains both very high abrasion resistance and weldability.

Part No	Alternative number	Size(mm)	Dimension
			A	B	C	D	E
SWB1200	SWB-1200	200x13x30	200	13	20	10	30
SWB1244	SWB-1244	244x10x35	244	10	25	10	35
SWB1202	SWB-1202	202x10x35	202	10	25	10	35
SWB2275	SWB-2275	275x5x29	275	5	21	8	29
SWB3150	SWB-3150	200x25x59	150	10	47	12	70
SWB3200	SWB-3200	400x25x59	200	3	47	12	59
SWB4125	SWB-4125	125x10x90	125	10	80	10	90
SWB4200	SWB-4200	200x25x50	200	10	38	12	50
