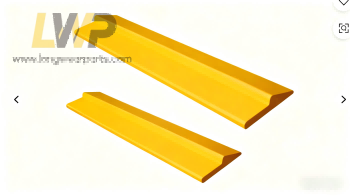

Products information 1)Material: Carbon steel or Manganese steel or boron steel 2)Surface: yellow paint or gray paint or as your request 3)Hardness: HB280-500 or HB320~360 or HB440~500 4)Technique: forging, machining, heat treatment 5) Package: strong plywood pallet 6) Application :used in a wide variety of applications across all Caterpillar,Komatsu , Shantui graders,bulldozers,loader buckets .Multiple edge models to match your applications and job site's needs .

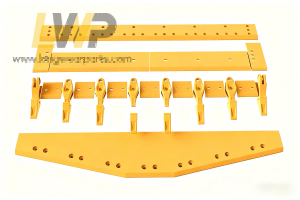

Long wear parts product line includes a comprehensive array of Cutting edge, Segment ,Half arrow,Spade Nose Base Edge,Protector compatible with all makes and models of Caterpillar loaders .
Long wear parts supply full range of bolt-on and weld-in blades , edge design includes Single bevel flat edge(SBF), Wide Bevel flat edge(WBF),Double bevel flat edge(DBF).
Part number
Alternative number
Description
Dimension
Hole
1U0762
1U-0762
Center
1.375 x 16.000 x 55.250
3
1004047
100-4047
HD Center
1.625 x 16.000 x 55.375
3
1368758
136-8758
Extra HD Center
2.000 x 16.000 x 55.250
3
1368759
136-8759
Extra HD End
2.000 x 22.000 x 10.375
3
2174725
217-4725
HA Center (Cast)
1.750 x 16.750 x 36.750
4
2174726
217-4726
HA End (Cast)
1.875 x 16.750 x 10.500
6
2174725TP
217-4725TP
Bolt on Top Plate Center
1.250 x 13.515 x 36.750
4
2174726TPR
217-4726TPR
Bolt on Top Plate RH
1.250 x 13.372 x 6.000
3
2174726TPL
217-4726TPL
Bolt on Top Plate LH
1.250 x 13.372 x 6.000
3
2174725N
217-4725N
Narrow HA Center (Cast)
1.875 x 12.750 x 36.750
2
2085344
208-5344
C/IMP Center REV
3
2085177
208-5177
C/IMP End REV
1.625 x 22.000 x 10.375
3
6Y3271
6Y-3271
C/IMP Center NR LH/RH
1.375 x 13.000 x 55.250
3
1230334
123-0334
C/IMP Center NR LH
1.375 x 16.500 x 10.375
3
1230335
123-0335
C/IMP Center NR RH
1.375 x 16.500 x 10.375
3
9W6750
9W-6750
Rear Wear Plate
1.375 x 10.000 x 23.500
4
7V0909
7V-0909
Base Edge For Bolt-on Edges Only
1.500 x 11.813 x 130.875
12
7V9270
7V-9270
Corner no holes RH
1.625 x 10.000 x 11.500
7V0910
7V-0910
Rear Wear Plate
1.625 x 11.500 x 23.625
4
4V1741
4V-1741
Base Edge For Bolt-on Edges or Teeth
1.750 x 12.000 x 132.875
24
7V8648
7V-8648
Corner no holes RH
7V8647
7V-8647
Corner no holes LH
4T6589
4T-6589
Center
1.375 x 16.000 x 65.625
8
4T6590
4T-6590
End
1.375 x 16.000 x 33.750
4
1078574
107-8574
HD Center
1.750 x 16.000 x 65.625
8
1078575
107-8575
HD End
1.750 x 16.000 x 33.750
4
4V2482
4V-2482
Base Edge For Bolt-on Edges or Teeth
1.500 x 11.500 x 132.875
16
1119770
111-9770
Base Edge With Segment Holes
1.750 x 12.000 x 134.060
30
1358246
135-8246
Sidebar Protector
1.125 x 5.750 x 18.188
