Products information 1)Idler roller body material: 35Mn/35MnB/40Cr/#45Carbon steel 2)Surface hardness: HRC52-60 ;Hardened layer:5~7mm; 3)Shaft material: 40Cr/42CrMo 4)Shaft Hardness: HRC54-60,Hardened layer:2~4mm; 5)Tensile Strength:≥600MPa;Yield Strength:≥350MPa; 6)Impact Toughness: ≥30J/cm2（normal temperature） 7)Package: packed in strong pallets 8)Application: idlers guide the track in and out of the track rollers. They intermittently support the machine's weight and provide a way to c

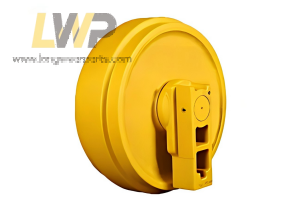

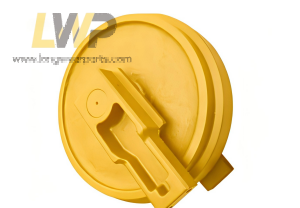

Long wear parts@ supply high quality Volvo Front Idler/Volvo Idler Group/ Volvo Track Idler/Volvo Idler Wheel/Volvo Idler Roller.
Our Idler Rollers have a high hardness level of HRC52-60. Our Long wear parts@ Idler Group Precisely Quenched for Maximum Durability—Resistant to Cracking and Deformation, Built to Withstand Both Mining and Earthmoving Operations.
Key Aspects of Our Long wear parts@ Front Idler Process:
Wheel Body: Forging/Roll Forging → Quenching and Tempering → Medium-Frequency Induction Hardening → Tempering
Wheel Axle: Quenching and Tempering → Medium-Frequency Hardening → Precision Grinding (Roughness Ra ≤ 0.8)
Long wear parts@ Idler Wheel are available various models, can fit Caterpillar(CAT) /Komatsu /ESCO /Sany /Doosan/ Hyundai/ Hitachi/ Liebherr/ Hensley /VOLVO/ Liugong/ Xugong/ MTG/JCB/H&L/Combi/ Case/John deere/Kobelco/Fiat/Sumitomo/ Bobcat/Samsung equipments.
Model
Part number
Alternative No.
Description
EC460C
14533152
VOE14533152
Volvo Front Idler
EC290 / MX295
14510972
VOE14510972
Volvo Front Idler
EC290 Prime
14589914
VOE14589914
Volvo Front Idler
EC700
14525744
VOE14525744
Volvo Front Idler
D6P
308101970
3081-01970
Volvo Front Idler
EC330, EC360, EC380
14510974
VOE14510974
Volvo Front Idler
EC460LC, EC460LD, EC460LR, EC480HR, EC480L,
14510975
VOE14510975
Volvo Front Idler
EC190, EC235, EC290,FC2924
14520766
VOE14520766
Volvo Front Idler
EC330, EC360, EC380
14530808
VOE14530808
Volvo Front Idler
EC150, EC160, EC180, EC200, EC210, EC220,
EC235, EC240, EC250, ECR235, FC2121, FC2421
14618207
VOE14618207
Volvo Front Idler
