Komatsu Loader WA320 cutting edge 419-820-2130/4198202130

Products information
1)Material: Carbon steel or Manganese steel or boron steel
2)Surface: yellow paint or gray paint or as your request
3)Hardness: HB280-320 or HB320~360 or HB440~500
4)Technique: forging, machining, heat treatment

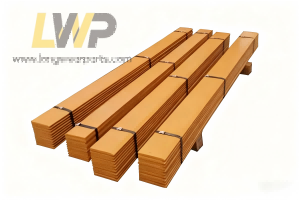

5) Package: strong plywood pallet
6) Application :used in a wide variety of applications across all Caterpillar,Komatsu , Shantui graders,bulldozers,loader buckets .Multiple edge models to match your applications and job site's needs .

Product Description:

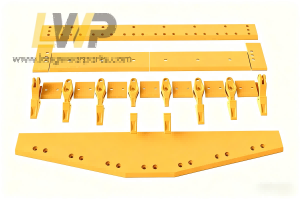

Long wear parts product line includes a comprehensive array of  Cutting edge, Segment ,Blade ,Half arrow,Spade Nose Base Edge,Protector compatible with all makes and models of  Komatsu loaders .Long wear parts supply full range of bolt-on and weld-in blades , edge design includes Single bevel flat edge(SBF), Wide Bevel flat edge(WBF),Double bevel flat edge(DBF).

Model Part number Alternative number Description
WA320 419-70-22140 4197022140 Bolt on weld plate
WA320 419-T65-2120 419T652120 Base Edge  with segment hole
WA320 419-806-2130 4198062130 Corner side bar
WA320 419-70-22430 4197022430 Corner side bar
WA320 418-815-1211 4188151211 Edges (Bolt-on)
WA320 418-815-1210 4188151210 Edges (Bolt-on)
WA320 419-70-22230 4197022230 Base Edge
WA320 419-70-12122 4197012122 Base Edge
WA320 419-70-12152 4197012152 Corner Base Edge
WA320 419-70-12162 4197012162 Corner Base Edge
WA320 419-820-2130 4198202130 Base Edge
WA320 419-70-12141 4197012141 Bolt on weld plate
WA320 419-819-1120 4198191120 Spade Nose Base Edge
WA320 419-819-1140 4198191140 Weld-on Corner Edge
WA320 419-819-1130 4198191130 Weld-on Corner Edge
WA320 423-815-A110 423815A110 Bolt on center edge
WA320 423-815-A120 423815A120 Bolt on end edge
