Products information 1)Idler roller body material: 35Mn/35MnB/40Cr/#45Carbon steel 2)Surface hardness: HRC52-60 ;Hardened layer:5~7mm; 3)Shaft material: 40Cr/42CrMo 4)Shaft Hardness: HRC54-60,Hardened layer:2~4mm; 5)Tensile Strength:≥600MPa;Yield Strength:≥350MPa; 6)Impact Toughness: ≥30J/cm2（normal temperature） 7)Package: packed in strong pallets 8)Application: idlers guide the track in and out of the track rollers. They intermittently support the machine's weight and provide a way to c

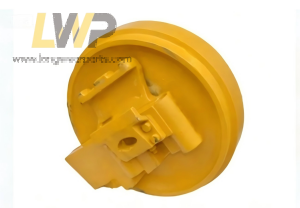

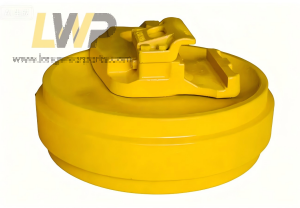

Long wear parts@ supply high quality Komatsu Front Idler/Komatsu Idler Group/ Komatsu Track Idler/ Komatsu Idler Wheel/ Komatsu Idler Roller.
Long wear parts@ idler wheel is forged from high-quality alloy steels—such as 35Mn, 35MnB, or 40Cr—offering exceptional strength and toughness to resist fracture.
The wheel tread undergoes intermediate-frequency induction hardening, achieving a hardness of HRC 52–60; the hardened layer is uniform, ensuring excellent wear resistance without spalling.
Precision machining ensures superior coaxiality, resulting in smooth, vibration-free operation that minimizes track wear.
The wheel body features an optimized structural design that provides excellent resistance to both impact and fatigue, ensuring stable performance even under the heavy-load conditions typical of mining operations.
Reliable sealing effectively prevents the ingress of dust and water, thereby extending the service life of the internal bearings and bushings.
Long wear parts@idler groups are compatible with Caterpillar(CAT) /Komatsu /ESCO /Sany /Doosan/ Hyundai/ Hitachi/ Liebherr/ Hensley /VOLVO/ Liugong/ Xugong/ MTG/JCB/H&L/Combi/ Case/John deere/Kobelco/Fiat/Sumitomo/ Bobcat/Samsung machines and so on.
Model
Part number
Alternative No.
Description
D80
154-30-00291
1543000291
Komatsu Idler Group
D80,D85
150-30-22118
1503022118
Komatsu Idler Group
D80,D85
158-30-00100
1583000100
Komatsu Idler Group
D155
175-30-23114
1753023114
Komatsu Idler Group
D155,D155A-2
175-30-00575
1753000575
Komatsu Idler Group
D375A-2,D375A-3
195-30-01030
1953001030
Komatsu Idler Group
D375A-5
195-30-01430
1953001430
Komatsu Idler Group
D375A-5
195-30-01431
1953001431
Komatsu Idler Group
PC1000-2,PC1100-6,PC1250-7,8
21N-30-00110
21N3000110
Komatsu Idler Group
PC2000-8
21T-30-00381
21T3000381
Komatsu Idler Group
D155A-3
17A-30-00040
17A3000040
Komatsu Idler Group
D155A-3
17A-30-00042
17A3000042
Komatsu Idler Group
D355A-3
195-30-00470
1953000470
Komatsu Idler Group
D155A-6
17A-30-00430
17A3000430
Komatsu Idler Group
D61PX
134-30-00280
1343000280
Komatsu Idler Group
D61PX
134-30-00200
1343000200
Komatsu Idler Group
