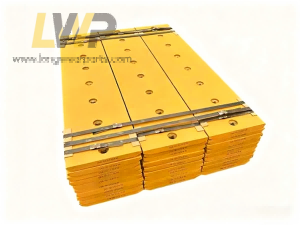

Komatsu Dozer D60 cutting edge 154-70-11314/144-920-1120/144-70-11131

Products information
1)Material: Carbon steel or Manganese steel or boron steel
2)Surface: yellow paint or gray paint or as your request
3)Hardness: HB280-320 or HB320~360 or HB440~500
4)Technique: forging, machining, heat treatment
5) Package: strong plywood pallet
6) Application :used in a wide variety of applications across all Caterpillar,Komatsu , Shantui graders,bulldozers,loader buckets .Multiple edge models to match your applications and job site's needs .

Our aftermarket full sets of Komatsu D60 crawler dozer Cutting Edge & End Bits replacement are bolt-on GET wear parts specially designed for D60 crawler dozer buckets. The Komatsu D60 crawler dozers are widely used in large earthworks, mine overburden stripping, quarry grading, highway subgrade construction, bulk yard preparation and hard soil / weathered rock surface clearing.

We can supply various bevel design cutting edges for Komatsu D60 crawler dozers , including double bevel cutting edge,single bevel cutting edge, square edge and segmented cutting edge. Different bevel design fit different working site condition.We can also supply various end bit styles, including standard bolt-on end bit,heavy duty reinforced end bit,weld-on end bit and serrated end bit.

There are mainly 4 raw material options :

1. 30MnB Boron steel : use most, hardness is about HRC 440–500,can balance toughness and wear resistance well,it is ideal for sand, gravel and earth works.

2. C80 Carbon Steel : it is economical, hardness can reach HB280–360 after quenched and tempered, Suit for pure earthmoving and loose material handling, not fit rocky and high-impact sites.

3. NM400/NM450 alloy steel : own superior anti-scouring and wear resistance compared with boron steel, has greatly extending service life for long-term gravel, aggregate and construction debris working scenarios.

4. Mn13 high manganese steel : own work-hardening property, the surface will get harder under continuous impact. It fits occasional rock and hard impact. Not economical for pure earthmoving.

Thanks for your interest in Komatsu compact dozer D60 cutting edge and end bit.To provide you with accurate quotation, could you tell us below information ?

1. Exact model: Straight blade or U-blade or PAT angle blade?

2. Working condition: earth, sand, gravel or occasional rock?

3. Preferred material & style of cutting edge and end bit?

We can offer OEM equivalent quality, full inspection report and competitive price. Waiting for your reply.

Model	Part number	Alternative number	Description
D60	130-920-2180	1309202180	Ends
D60	154-70-11314	1547011314	Dozer cutting edge
D60	150-70-21346	1507021346	Cast end bit
D60	150-70-21356	1507021356	Cast end bit
D60	154-926-1120	1549261120	Dozer level cut end bit
D60	154-926-1130	1549261130	Dozer level cut end bit
D60	144-920-1120	1449201120	Dozer cutting edge
D60	144-70-11131	1447011131	Dozer cutting edge
D60	130-70-51A30	1307051A30	Dozer cutting edge
D60	130-920-A180	130920A180	End edge
D60	144-70-11180	1447011180	Cast end bit
D60	144-70-11190	1447011190	Cast end bit
D60	14Y-71-11330	14Y7111330	Dozer level cut end bit
D60	14Y-71-11340	14Y7111340	Dozer level cut end bit
D60	13F-Z27-A582	13FZ27A582	Dozer level cut end bit
D60	13F-Z27-A572	13FZ27A572	Dozer level cut end bit
D60	12F-70-31251	12F7031251	Dozer cutting edge
D60	13F-A70-1570	13FA701570	Dozer level cut end bit
D60	13F-A70-1580	13FA701580	Dozer level cut end bit
D60	130-70-51130	1307051130	Dozer cutting edge
D60	144-952-1130	1449521130	Hot cup end bit
D60	144-952-1120	1449521120	Hot cup end bit
