Products information 1)Material: Carbon steel or Manganese steel or boron steel 2)Surface: yellow paint or gray paint or as your request 3)Hardness: HB280-320 or HB320~360 or HB440~500 4)Technique: forging, machining, heat treatment 5) Package: strong plywood pallet 6) Application :used in a wide variety of applications across all Caterpillar,Komatsu , Shantui graders,bulldozers,loader buckets .Multiple edge models to match your applications and job site's needs .
Edge selection is critical for enhancing production and keeping cost to a minimum. Application affects the cutting edge shape, metallurgy and style. Impact, penetration and abrasion define your application environment. An edge has to penetrate the material and not break during operation. Edge life then becomes a matter of metallurgy and thickness.
Long wear parts product line includes a comprehensive array of Komatsu grader cutting edge , Komatsu Curved Serrated blade, Komatsu grader blade, Komatsu grader end bit, Komatsu overlay compatible with all makes and models of Caterpillar machines .
Part number
Alternative number
Description
Dimension
237-870-1130
2378701130
Grader end bit
GD28,GD300A-1
237-870-1120
2378701120
Grader end bit
GD300A-1 2001-UP
23B-70-31271
23B7031271
Grader end bit
GD555,GD655,GD675
232-70-12130
2327012130
Grader end bit
GD37, GD310RC-3A, GD500R-1
234-70-12214
2347012214
Grader end bit
GD521A-1,GD600R-2,GD611A-1,GD613A-1,GD705R-2
232-70-52180
2327052180
Grader end bit
GD625A-1, GD600R-3, GD621, GD623, GD625

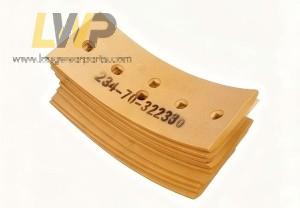

234-70-32230
2347032230
Grader end bit
GD705, GD725, GD805, GD825
233-70-12150
2337012150
Grader end bit
GD31RC-3A
233-70-12160
2337012160
Grader end bit
GD31RC-3A
234-70-12212
2347012212
Grader end bit
GD40
234-70-12213
2347012213
Grader end bit
GD825A-1
