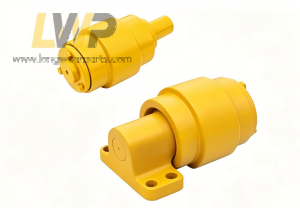

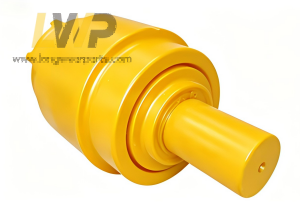

Kobelco Upper Roller 24100N6420F1/24100N5946F2/24100N6603F1

Products information
1)Idler roller body material: 50Mn/40Mn2/42CrMo
2)Surface hardness: HRC48-55 ;
3)Shaft material: 40Cr/#45Carbon steel
4)Bearing/Bushing material: GCr15
5)Package: packed in strong pallets
6)Application: Used to support the track, prevent sagging, and maintain tension and linear guidance.

Product Description:

Long wear parts@ supply high quality Kobelco Carrier Roller,Kobelco Upper Roller,Kobelco Top Roller, Kobelco Rodillos Superiores,Kobelco Rullo Superiore.

Our Kobelco Carrier Roller/Top Roller have a high hardness level of HRC48-55, ourKobelco Upper Rollers feature the following characteristics:

1High Load-Bearing Capacity: Withstands track tension and the upper load of the equipment, ensuring stable support;

2: Superior Wear Resistance: Endures prolonged sliding friction against the track chain links, offering a long service life;

3Effective Sealing: Prevents the ingress of mud, water, sand, and dust, preserving internal lubrication;

4Low Friction: Ensures smooth rotation with minimal resistance and low energy consumption;

5: Impact Resistance: Withstands vibrations and shocks encountered on complex terrain.

Long wear parts@ Rodillos Superiores/Rullo Superiore are available various models, can fit Caterpillar(CAT) /Komatsu /ESCO /Sany /Doosan/ Hyundai/ Hitachi/ Liebherr/ Hensley /VOLVO/ Liugong/ Xugong/ MTG/JCB/H&L/Combi/ Case/John deere/Kobelco/Fiat/Sumitomo/ Bobcat/Samsung equipments.


Model Part number Description
SK150LC 24100N6420F1 Kobelco Upper Roller
SK200-1~5,K909ALC,K909LC-2 24100N5946F2 Kobelco Upper Roller
SK100–SK260 24100N5946F3 Kobelco Upper Roller
SK200-1~5,K909ALC,K909LC-2 YN64D01022F1 Kobelco Upper Roller
SK200-1~5,K909ALC,K909LC-2 YN64D00014F1 Kobelco Upper Roller
SK200-6 YN64D01022F0 Kobelco Upper Roller
SK170-9 SK210-9 SK260-9 YN64D01120F1 Kobelco Upper Roller
SK220,SK250 24100N6603F1 Kobelco Upper Roller
SK220-1/3 24100N6194F1 Kobelco Upper Roller
SK300-1 24100N3841F2 Kobelco Upper Roller
SK300-2/3 24100N7035F1 Kobelco Upper Roller
SK320, NEW HOLLAND E385B 24100N7035F3 Kobelco Upper Roller
SK300,SK400 24100N8640F1 Kobelco Upper Roller
