Products information 1)Idler roller body material: 35Mn/35MnB/40Cr/#45Carbon steel 2)Surface hardness: HRC52-60 ;Hardened layer:5~7mm; 3)Shaft material: 40Cr/42CrMo 4)Shaft Hardness: HRC54-60,Hardened layer:2~4mm; 5)Tensile Strength:≥600MPa;Yield Strength:≥350MPa; 6)Impact Toughness: ≥30J/cm2（normal temperature） 7)Package: packed in strong pallets 8)Application: idlers guide the track in and out of the track rollers. They intermittently support the machine's weight and provide a way to c

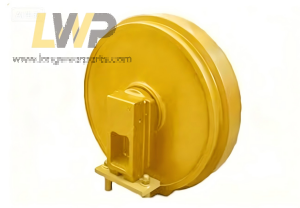

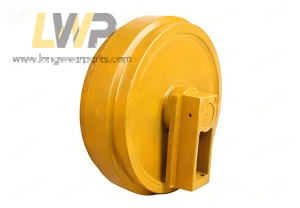

Long wear parts@ supply high quality Kobelco Front Idler/Kobelco Idler Group/ Kobelco Track Idler/Kobelco Idler Wheel/Kobelco Idler Roller.
Long wear parts@ idler wheel is forged from high-quality alloy steels—such as 35Mn, 35MnB, or 40Cr—offering exceptional strength and toughness to resist fracture.
The wheel tread undergoes intermediate-frequency induction hardening, achieving a hardness of HRC 52–60; the hardened layer is uniform, ensuring excellent wear resistance without spalling.
Precision machining ensures superior coaxiality, resulting in smooth, vibration-free operation that minimizes track wear.
The wheel body features an optimized structural design that provides excellent resistance to both impact and fatigue, ensuring stable performance even under the heavy-load conditions typical of mining operations.
Reliable sealing effectively prevents the ingress of dust and water, thereby extending the service life of the internal bearings and bushings.
Long wear parts@idler groups are compatible with Caterpillar(CAT) /Komatsu /ESCO /Sany /Doosan/ Hyundai/ Hitachi/ Liebherr/ Hensley /VOLVO/ Liugong/ Xugong/ MTG/JCB/H&L/Combi/ Case/John deere/Kobelco/Fiat/Sumitomo/ Bobcat/Samsung machines and so on.
Model
Part number
Description
SK300LC, SK270LC
24100N3099F5
Kobelco Front Idler Group
K905LC, K905
24100N4043F1
Kobelco Front Idler Group
MD200BLC, K907LC, K907
24100N4064F1
Kobelco Front Idler Group
K904, K904L
24100N4108F1
Kobelco Front Idler Group
K904L, K904
24100N4108P1
Kobelco Front Idler Group
K904, K904L
24100N4845F1
Kobelco Front Idler Group
SEE FIG(06-004) Kobelco parts
24100N5627F1
Kobelco Front Idler Group
K903A
24100N635F4
Kobelco Front Idler Group
K903B
24100N635F6
Kobelco Front Idler Group
SK120, SK100, SK120LC
24100N6369F2
Kobelco Front Idler Group
SK60
24100N6398F1
Kobelco Front Idler Group
SK120, SK100, SK120LC
24100N6683F1
Kobelco Front Idler Group
SK120, SK100, SK120LC
24100N6683F2
Kobelco Front Idler Group
