Products information 1)Idler roller body material: 35Mn/35MnB/40Cr/#45Carbon steel 2)Surface hardness: HRC52-60 ;Hardened layer:5~7mm; 3)Shaft material: 40Cr/42CrMo 4)Shaft Hardness: HRC54-60,Hardened layer:2~4mm; 5)Tensile Strength:≥600MPa;Yield Strength:≥350MPa; 6)Impact Toughness: ≥30J/cm2（normal temperature） 7)Package: packed in strong pallets 8)Application: idlers guide the track in and out of the track rollers. They intermittently support the machine's weight and provide a way to c

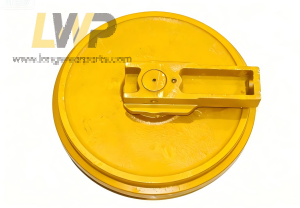

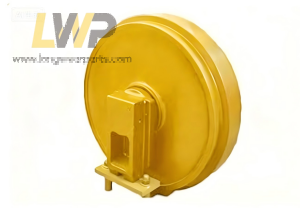

Long wear parts@ supply high quality Kobelco Front Idler/Kobelco Idler Group/ Kobelco Track Idler/Kobelco Idler Wheel/Kobelco Idler Roller.
Long wear parts@ idler wheel is forged from high-quality alloy steels—such as 35Mn, 35MnB, or 40Cr—offering exceptional strength and toughness to resist fracture.
The wheel tread undergoes intermediate-frequency induction hardening, achieving a hardness of HRC 52–60; the hardened layer is uniform, ensuring excellent wear resistance without spalling.
Precision machining ensures superior coaxiality, resulting in smooth, vibration-free operation that minimizes track wear.
The wheel body features an optimized structural design that provides excellent resistance to both impact and fatigue, ensuring stable performance even under the heavy-load conditions typical of mining operations.
Reliable sealing effectively prevents the ingress of dust and water, thereby extending the service life of the internal bearings and bushings.
Long wear parts@idler groups are compatible with Caterpillar(CAT) /Komatsu /ESCO /Sany /Doosan/ Hyundai/ Hitachi/ Liebherr/ Hensley /VOLVO/ Liugong/ Xugong/ MTG/JCB/H&L/Combi/ Case/John deere/Kobelco/Fiat/Sumitomo/ Bobcat/Samsung machines and so on.
Model
Part number
Description
SK220-3/SK220-4/SK220-6/SK220LC-3/SK220LC-6
24100J11697F1
Kobelco Front Idler Group
SK300
24100N3099F
Kobelco Front Idler Group
SK330-6
LC52D00002F1
Kobelco Front Idler Group
SK480
LS52D00002F1
Kobelco Front Idler Group
SK290LC/SK235SR/SK290LC-6E/SK250LC
LB52D00002F1
Kobelco Front Idler Group
SK290LC-6E, SK295-9, SK250LC-6E
LB52D00007F2
Kobelco Front Idler Group
SK290LC-6E, SK330LC-6E, SK330LC
LC52D00006F1
Kobelco Front Idler Group
SK350-8, SK295-8
LC52D00026F1
Kobelco Front Idler Group
SK330LC/SK300/SK40/SK330
LC52DU0001F1
Kobelco Front Idler Group
SK100L, SK100, SK120, SK120LC
LP52D00003F2
Kobelco Front Idler Group
SK40SR, SK45SR-2, SD40SR
PH52D00017F1
Kobelco Front Idler Group
SK55SRX
PS52D00002F1
Kobelco Front Idler Group
SK55SRX
PS52D00003P1
Kobelco Front Idler Group
SK55SRX
PS54D00001F1
Kobelco Front Idler Group
17SR-3, SK17SR-3
PU52D00019F1
Kobelco Front Idler Group
