Product

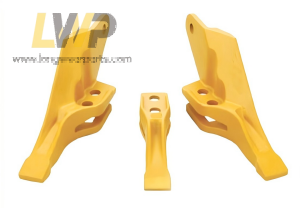

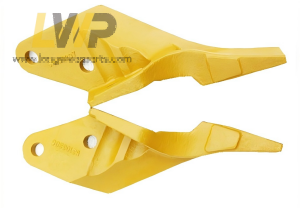

JCB Bucket Tooth 531-03205/531-03208/531-03209

Products information
1) Material: Low alloy steel / Forging
2) Surface: Standard yellow or as your request
3) Hardness: 480-520 HBW
4) Impact Strength: ≥18J (at 25°C)
5) Package: packed in plywood cases
6) Application :used in Excavator buckets, Loader bucekts,Diggers,Rippers to  efficiently dig, trench, and break hard ground.

Product Description:

Long wear parts@ supply high quality JCB Monoblock Tooth & Hyundai Monoblock Tooth. Our Monoblock Bucket Teeth are designed for improved performance and wear life and are the ideal choice for all operators looking for quality and value. We have complete production lines including casting, forging, heat treatment and polishing, all production links are controlled by ourselves to guarantee stable quality. ISO 9001-certified manufacturing facility – every production step is documented and traceable.

Our aftermarket monoblock bucket tooth are manufactured strictly to OEM dimensional standards for direct interchangeability , we can supply both casting and forging versions monoblock to fit different working severity .

The good quality Monoblock teeth/onepiece integrated bucket teeth we manufacture are solid singleunit GET wear part. Unlike the conventional combination of separate bucket tooth plus bucket adapter, the monoblock tooth integrates the tooth tip and mounting base into one solid component. It is directly welded or bolted onto the bucket lip without needing an extra tooth adapter.

The traditional toothadapter combination creates fitting gaps,lead sand and rock debris intrude into gaps, accelerate wear of pins and contact surfaces, leading to premature replacement. Monoblock tooth removes these mating interfaces. No adapter, no pins between tooth and adapter, greatly reduces auxiliary wearparts consumption. When the tooth is worn out, you only need to replace the whole monoblock unit,so can simplify your onsite maintenance work.

Except JCB Monoblock Tooth and Hyundai Monoblock Tooth , we can also supply you GET Parts & monoblock teeth for other brands , such as Caterpillar(CAT) /Komatsu/Sany / Liugong/ Xugong and so on .We execute strict quality control with dimensional inspection and hardness testing on every batch – ensuring consistent performance order after order.

We provide 6–10 months quality warranty under normal construction conditions. If fracture occurs due to production quality problems within the warranty period, we support replacement or compensation according to the agreement.

Family Part number Alternative number Description
JCB-3CX4-CX 531/03205 531-03205 JCB Monoblock Tooth
JCB-3CX4-CX 531/03208 531-03208 JCB Monoblock Side Tooth
JCB-3CX4-CX 531/03209 531-03209 JCB Monoblock Side Tooth
JCB-3CX4-CX 531/03206 531-03206 JCB Single Flange Side Cutter
JCB-3CX4-CX 531/03207 531-03207 JCB Single Flange Side Cutter
JCB-3CX4-CX 332C4388 332/C4388 JCB Monoblock Tooth Point
JCB-3CX4-CX 332C4389 332/C4389 JCB Monoblock Tooth Point
JCB-3CX4-CX 332C4390 332/C4390 JCB Monoblock Tooth Point
Hyundai 930 / 940 61U281200 61U2-81200 Hyundai Monoblock Tooth
Hyundai 930 / 940 61U281260 61U2-81260 Hyundai Monoblock Side Tooth
Hyundai 930 / 940 61U281250 61U2-81250 Hyundai Monoblock Side Tooth
