Products information 1)Idler roller body material: 35Mn/35MnB/40Cr/#45Carbon steel 2)Surface hardness: HRC52-60 ;Hardened layer:5~7mm; 3)Shaft material: 40Cr/42CrMo 4)Shaft Hardness: HRC54-60,Hardened layer:2~4mm; 5)Tensile Strength:≥600MPa;Yield Strength:≥350MPa; 6)Impact Toughness: ≥30J/cm2（normal temperature） 7)Package: packed in strong pallets 8)Application: idlers guide the track in and out of the track rollers. They intermittently support the machine's weight and provide a way to c

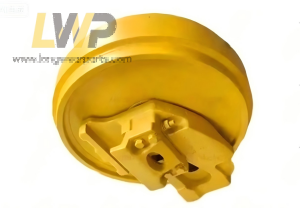

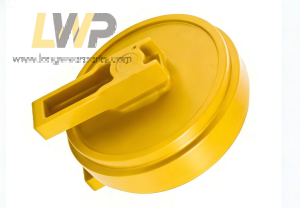

Long wear parts@ supply high quality Hyundai Front Idler/Hyundai Idler Group/ Hyundai Track Idler/Hyundai Idler Wheel/Hyundai Idler Roller.
Long wear parts@ idler wheel is forged from high-quality alloy steels—such as 35Mn, 35MnB, or 40Cr—offering exceptional strength and toughness to resist fracture.
The wheel tread undergoes intermediate-frequency induction hardening, achieving a hardness of HRC 52–60; the hardened layer is uniform, ensuring excellent wear resistance without spalling.
Precision machining ensures superior coaxiality, resulting in smooth, vibration-free operation that minimizes track wear.
The wheel body features an optimized structural design that provides excellent resistance to both impact and fatigue, ensuring stable performance even under the heavy-load conditions typical of mining operations.
Reliable sealing effectively prevents the ingress of dust and water, thereby extending the service life of the internal bearings and bushings.
Long wear parts@idler groups are compatible with Caterpillar(CAT) /Komatsu /ESCO /Sany /Doosan/ Hyundai/ Hitachi/ Liebherr/ Hensley /VOLVO/ Liugong/ Xugong/ MTG/JCB/H&L/Combi/ Case/John deere/Kobelco/Fiat/Sumitomo/ Bobcat/Samsung machines and so on.
Model
Part number
Alternative No.
Description
R290LC,R290LC-3,R320LC,R360LC-3
81E8-2004
81E82004
Hyundai Idler Assy
42HDLL,39HDRB,R360LC-3
81EH-20070
81EH20070
Hyundai Idler Assy
R290,R320-2
81E5-2004
81E52004
Hyundai Idler Assy
R290-7,R320
81N8-13010
81N813010
Hyundai Idler Assy
R250LC-7A,R290LC-7,R320LC-7
81N8-13010BG
81N813010BG
Hyundai Idler Assy
R320LC-7
81N8-13011BG
81N813011BG
Hyundai Idler Assy
R360LC-3,R290-3,R280KLC,R280K
81EH-00070
81EH00070
Hyundai Idler Assy
R360LC-3
81EH-10050
81EH10050
Hyundai Idler Assy
R360LC-7,R360LC-7A
81EH-20070BG
81EH20070BG
Hyundai Idler Assy
R360LC-7A,
81EH-20071BG
81EH20071BG
Hyundai Idler Assy
R380LC-9
81EH-20071GG
81EH20071GG
Hyundai Idler Assy
R450LC,
81E7-0024
81E70024
Hyundai Idler Assy
