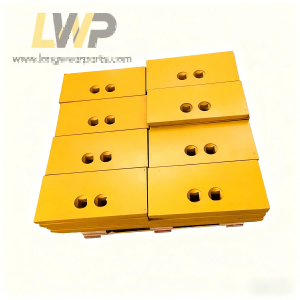

Products information 1)Material: Carbon steel or Manganese steel or boron steel 2)Surface: yellow paint or gray paint or as your request 3)Hardness: HB280-500 or HB320~360 or HB440~500 4)Technique: forging, machining, heat treatment 5) Package: strong plywood pallet 6) Application :used in a wide variety of applications across all Caterpillar,Komatsu , Shantui graders,bulldozers,loader buckets .Multiple edge models to match your applications and job site's needs .
Long wear parts product line includes a comprehensive array of Cutting edge, Segment ,Half arrow,Spade Nose Base Edge,Protector compatible with all makes and models of Caterpillar loaders .
Long wear parts supply full range of bolt-on and weld-in blades , edge design includes Single bevel flat edge(SBF), Wide Bevel flat edge(WBF),Double bevel flat edge(DBF).
Part number
Alternative number
Description
Dimension
Hole
8X0809
8X-0809
Spade Nose Base Edge
3.000 x 36.890 x 222.441
40
8X0813
8X-0813
Corner no holes RH
8X0816
8X-0816
Corner no holes LH
1711704
171-1704
J700 Weld-On Center Adapter
9.059 x 7.406 x 27.203
1711705
171-1705
J700 Weld-On RH Adapter
9.059 x 7.406 x 27.203
1711706
171-1706
J700 Weld-On LH Adapter
9.059 x 7.406 x 27.203
8E3158
8E-3158
Segment RH
2.000 x 28.500 x 24.125
5
8E3159
8E-3159
Segment LH
2.000 x 28.500 x 24.125
5
1004013
100-4013
HD Segment RH
3.000 x 28.500 x 24.125
5
1004014
100-4014
HD Segment LH
3.000 x 28.500 x 24.125
5
1102339
110-2339
Spade Nose Base Edge
4.000 x 32.677 x 222.441
1099031
109-9031
HA Segment RH (Cast)
3.500 x 27.478 x 17.323
5
1099032
109-9032
HA Segment LH (Cast)
3.500 x 27.546 x 17.323
5
1099031TP
109-9031TP
Bolt on Top Plate RH
1.500 x 13.750 x 17.652
5
1099032TP
109-9032TP
Bolt on Top Plate LH
1.500 x 13.750 x 17.652
5
1212105
121-2105
Spade Nose Base Edge
4.000 x 39.370 x 222.441
65
1099033
109-9033
HA Segment (Cast)
3.500 x 26.750 x 24.488
5
1099033TP
109-9033TP
Bolt on Top Plate Center
1.500 x 13.059 x 24.500
5
1029914
102-9914
Base Edge With Segment Holes
4.000 x 22.323 x 222.441
1216660
121-6660
Spade Nose Base Edge
4.000 x 39.370 x 244.882
65
1019373
101-9373
Corner no holes RH
1019374
101-9374
Corner no holes LH
