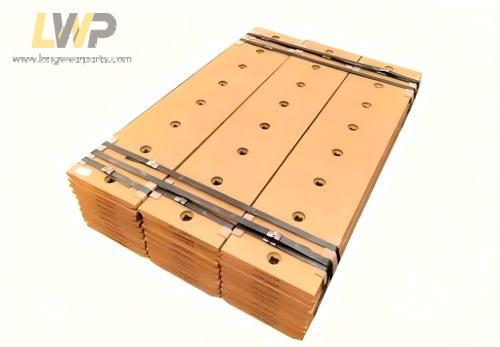

Products information 1)Material: Carbon steel or Manganese steel or boron steel 2)Surface: yellow paint or gray paint or as your request 3)Hardness: HB280-500 or HB320~360 or HB440~500 4)Technique: forging, machining, heat treatment 5) Package: strong plywood pallet 6) Application :used in a wide variety of applications across all Caterpillar,Komatsu , Shantui graders,bulldozers,loader buckets .Multiple edge models to match your applications and job site's needs .
Long wear parts product line includes a comprehensive array of Cutting edge, Segment ,Half arrow,Spade Nose Base Edge,Protector compatible with all makes and models of Caterpillar loaders .
Long wear parts supply full range of bolt-on and weld-in blades , edge design includes Single bevel flat edge(SBF), Wide Bevel flat edge(WBF),Double bevel flat edge(DBF).
Part number
Alternative number
Description
Dimension
Hole
2085261
208-5261
Center
1.625 x 16.000 x 65.625
3
2085261FHAL
208-5261FHAL
Half Arrow Center LH (Fabricated)
1.750 x 13.000 x 65.625
3
2085261FHAR
208-5261FHAR
Half Arrow Center RH (Fabricated)
1.750 x 13.000 x 65.625
3
8V9583
8V-9583
Spade Nose Base Edge Without Holes
2.000 x 27.500 x 134.375
6W9414
6W-9414
Corner no holes LH/RH for flushmount te
8R4649
8R-4649
Spade Nose Base Edge
2.000 x 27.750 x 143.500
31
4E6474
4E-6474
Corner LH/RH for 9J9600 Protector
1.250 x 11.063 x 59.125
3

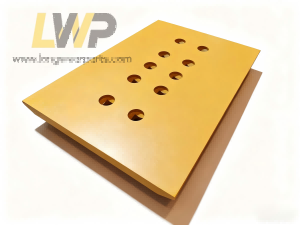

9W5733
9W-5733
Center
1.375 x 19.000 x 27.794
5
9W5736
9W-5736
Center RH
1.375 x 19.000 x 36.238
6
9W5735
9W-5735
End RH
1.375 x 19.000 x 33.878
5
9W5731
9W-5731
Center LH
1.375 x 19.000 x 36.238
6
9W5732
9W-5732
End LH
1.375 x 19.000 x 33.878
5
1061096
106-1096
HD Center
1.750 x 19.000 x 27.813
5
1061098
106-1098
HD Intermediate End RH
1.750 x 19.000 x 36.188
6
1061097
106-1097
HD End RH
1.750 x 19.000 x 33.875
5
1061094
106-1094
HD Intermediate End LH
1.750 x 19.000 x 36.188
6
1061095
106-1095
HD End LH
1.750 x 19.000 x 33.875
5
9W5733HA
9W-5733HA
Half Arrow Center (Cast)
1.750 x 16.000 x 27.813
5
9W5736HA
9W-5736HA
Half Arrow Center RH (Cast)
1.750 x 16.000 x 30.142
6
9W5735HA
9W-5735HA
HA End RH (Cast)
1.750 x 16.000 x 27.847
4
9W5731HA
9W-5731HA
Half Arrow Center LH (Cast)
1.750 x 16.000 x 30.142
6
9W5732HA
9W-5732HA
HA End LH (Cast)
1.750 x 16.000 x 27.847
4
9W5734
9W-5734
Segment
1.375 x 19.000 x 12.250
3
9W5737
9W-5737
Segment RH
1.375 x 19.000 x 17.750
3
9W5730
9W-5730
Segment LH
1.375 x 19.000 x 17.750
3
9W8367
9W-8367
Optional Longer End Segment RH
1.375 x 19.000 x 20.250
3
9W8368
9W-8368
Optional Longer End Segment LH
1.375 x 19.000 x 20.250
3
1073490
107-3490
HD Segment
1.750 x 19.000 x 12.250
3
1073491
107-3491
HD Segment RH
1.750 x 19.000 x 17.750
3
1073492
107-3492
HD Segment LH
1.750 x 19.000 x 17.750
3
1167460
116-7460
HA Segment (Cast)
2.000 x 18.827 x 12.283
3
1167461
116-7461
HA Segment RH (Cast)
2.000 x 18.827 x 12.283
3
1167462
116-7462
HA Segment LH (Cast)
2.000 x 18.827 x 12.283
3
1957180CAST
195-7180CAST
Bolt on Top Plate Center
1.250 x 8.244 x 13.500
3
1957181CAST
195-7181CAST
Bolt on Top Plate RH
1.250 x 8.244 x 13.950
3
1957182CAST
195-7182CAST
Bolt on Top Plate LH
1.250 x 8.244 x 13.950
3
1386470
138-6470
C/IMP Segment REV
1.375 x 18.996 x 12.283
3
1386471
138-6471
C/IMP Segment RH REV
1.375 x 18.996 x 17.815
3
1386472
138-6472
C/IMP Segment LH REV
1.375 x 18.996 x 17.815
3
1U4929
1U-4929
Base Edge Wear Plate
1.375 x 10.000 x 31.750
5
9C2932
9C-2932
Base Edge With Segment Holes
2.000 x 13.000 x 143.500
21
9V0232
9V-0232
Base Edge Without Holes
2.000 x 13.000 x 143.500
2V4314
2V-4314
Corner no holes RH
1.500 x 11.500 x 9.375
2V4315
2V-4315
Corner no holes LH
1.500 x 11.500 x 9.375
