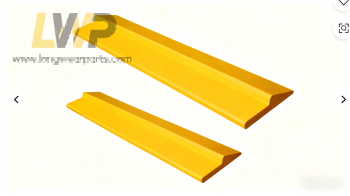

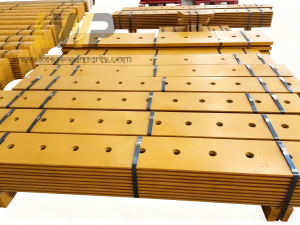

Products information 1)Material: Carbon steel or Manganese steel or boron steel 2)Surface: yellow paint or gray paint or as your request 3)Hardness: HB280-500 or HB320~360 or HB440~500 4)Technique: forging, machining, heat treatment 5) Package: strong plywood pallet 6) Application :used in a wide variety of applications across all Caterpillar,Komatsu , Shantui graders,bulldozers,loader buckets .Multiple edge models to match your applications and job site's needs .
Long wear parts product line includes a comprehensive array of Cutting edge, Segment ,Half arrow,Spade Nose Base Edge,Protector compatible with all makes and models of Caterpillar loaders .
Long wear parts supply full range of bolt-on and weld-in blades , edge design includes Single bevel flat edge(SBF), Wide Bevel flat edge(WBF),Double bevel flat edge(DBF).
Part number
Alternative number
Description
Dimension
Hole
4T6588
4T-6588
Center
1.375 x 16.000 x 47.625
6
4T6588-13
4T-6588-13
HD Center
1.625 x 16.000 x 47.625
6
9U3748
9U-3748
Base Edge With Segment Holes
1.750 x 12.000 x 145.188
30
1835190
183-5190
Base Edge With Segment Holes
2.000 x 12.800 x 145.188
30
2573667
257-3667
Base Edge With Segment Holes
2.000 x 15.748 x 145.472
30
6I8249FAB
6I-8249FAB
Corner 2 hole RH
2.500 x 10.002 x 11.750
2
6I8250FAB
6I-8250FAB
Corner 2 hole LH
2.500 x 10.002 x 11.750
2
2530066
253-0066
New Style 2 Hole Corner Protector RH
1.375 x 10.375 x 17.500
2
2530067
253-0067
New Style 2 Hole Corner Protector LH
1.375 x 10.375 x 17.500
2
1735428
173-5428
Old Style 2 Hole Corner Protector RH
1.250 x 9.250 x 14.500
2
1735429
173-5429
Old Style 2 Hole Corner Protector LH
1.250 x 9.250 x 14.500
2
1045841
104-5841
Center
1.375 x 16.000 x 62.375
3
1835325
183-5325
HD Center
1.625 x 16.000 x 62.375
3
1045841-16
104-5841-16
Extra HD Center
2.000 x 16.000 x 62.375
3
1368759
136-8759
Extra HD End
2.000 x 22.000 x 10.375
3
1045841HAC
104-5841HAC
Half Arrow Center (Cast)
1.750 x 16.750 x 38.827
4
1045841HALR
104-5841HALR
Half Arrow Center LH/RH (Cast)
1.750 x 16.750 x 42.925
4
2085342
208-5342
C/IMP Center REV
3
1321069
132-1069
C/IMP Center NR RH
1.375 x 11.000 x 62.375
3
1321070
132-1070
C/IMP Center NR LH
1.375 x 11.000 x 62.375
3
1386540
138-6540
Segment
1.375 x 13.000 x 14.625
2
1835324
183-5324
HD Segment
1.625 x 13.000 x 14.625
2
1386540FHAY
138-6540FHAY
HA Segment (Fabricated)
2.000 x 15.000 x 14.625
2
1909793
190-9793
Rear Wear Plate
1909794
190-9794
Heavy Duty Wear Plate
1366205
136-6205
Weld-On Wear Plate
1.000 x 10.750 x 16.250
2508402
250-8402
Base Edge With Segment Holes
2.000 x 15.748 x 150.850
30
