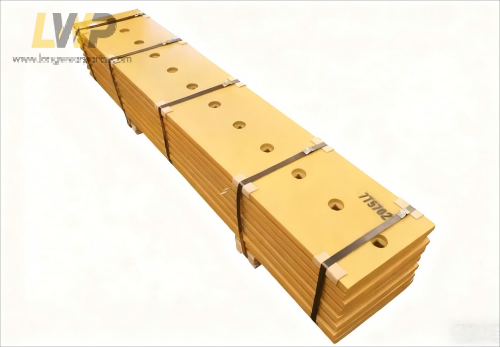

Products information 1)Material: Carbon steel or Manganese steel or boron steel 2)Surface: yellow paint or gray paint or as your request 3)Hardness: HB280-500 or HB320~360 or HB440~500 4)Technique: forging, machining, heat treatment 5) Package: strong plywood pallet 6) Application :used in a wide variety of applications across all Caterpillar,Komatsu , Shantui graders,bulldozers,loader buckets .Multiple edge models to match your applications and job site's needs .
Long wear parts product line includes a comprehensive array of Cutting edge, Segment ,Half arrow,Spade Nose Base Edge,Protector compatible with all makes and models of Caterpillar loaders .
Long wear parts supply full range of bolt-on and weld-in blades , edge design includes Single bevel flat edge(SBF), Wide Bevel flat edge(WBF),Double bevel flat edge(DBF).
Part number
Alternative number
Description
Dimension
Hole
1406823
140-6823
HD Center
1.375 x 14.170 x 55.100
3
1677430
167-7430
HD End
1.625 x 20.180 x 8.000
3
1006668HA
100-6668HA
HA Center (Cast)
1.750 x 15.625 x 35.375
4
1006668TP
100-6668TP
Bolt on Top Plate Center
1.000 x 12.586 x 35.375
4
1006668HAN
100-6668HAN
Narrow HA Center (Cast)
1.750 x 11.125 x 35.375
2
1073287
107-3287
C/IMP Center NR RH
1.375 x 12.000 x 55.250
3
1073286
107-3286
C/IMP Center NR LH
1.375 x 12.000 x 55.250
3
1006666
100-6666
Segment
1.180 x 14.170 x 11.540
2
1406870
140-6870
HD Segment
1.375 x 14.170 x 11.540
2
1744116
174-4116
HA Segment (Cast)
1.750 x 13.500 x 11.563
2
1486935
148-6935
Corner LH/RH for 2-1358246 Protectors
1358246
135-8246
Sidebar Protector
1.125 x 5.750 x 18.188
1359294
135-9294
Segment
1.625 x 13.000 x 11.810
2
1359295
135-9295
Segment RH
1.625 x 13.000 x 15.900
2
1359296
135-9296
Segment LH
1.625 x 13.000 x 15.900
2
1359544
135-9544
HA Segment (Cast)
1.750 x 18.315 x 11.811
2
1359545
135-9545
HA Segment RH (Cast)
1.750 x 18.315 x 11.969
2
1359546
135-9546
HA Segment LH (Cast)
1.750 x 18.315 x 11.969
2
6Y6351
6Y-6351
Base Edge Wear Plate
1.375 x 10.000 x 41.750
7

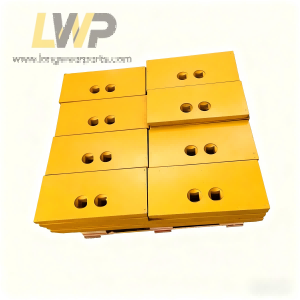

1358240
135-8240
Center
1.375 x 14.173 x 22.756
4
1358241
135-8241
Center RH
1.375 x 14.170 x 34.861
4
1358243
135-8243
End RH
1.375 x 14.173 x 27.321
4
1358244
135-8244
Center LH
1.375 x 14.173 x 27.321
4
1358242
135-8242
End LH
1.375 x 14.170 x 34.861
4
