Products information 1)Material: Carbon steel or Manganese steel or boron steel 2)Surface: yellow paint or gray paint or as your request 3)Hardness: HB280-500 or HB320~360 or HB440~500 4)Technique: forging, machining, heat treatment 5) Package: strong plywood pallet 6) Application :used in a wide variety of applications across all Caterpillar,Komatsu , Shantui graders,bulldozers,loader buckets .Multiple edge models to match your applications and job site's needs .

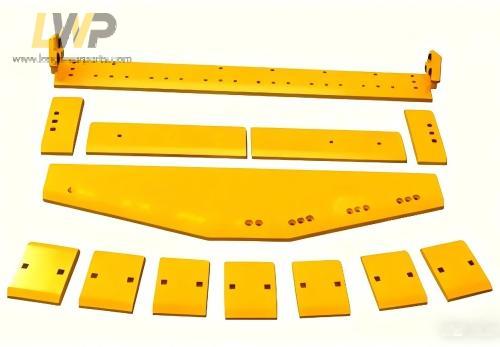

Long wear parts product line includes a comprehensive array of Cutting edge, Segment ,Half arrow,Spade Nose Base Edge,Protector compatible with all makes and models of Caterpillar loaders .
Long wear parts supply full range of bolt-on and weld-in blades , edge design includes Single bevel flat edge(SBF), Wide Bevel flat edge(WBF),Double bevel flat edge(DBF).
Part number
Alternative number
Description
Dimension
Hole
9V6575
9V-6575
Base Edge With Segment Holes
1.500 x 11.811 x 119.750
30
7V1490
7V-1490
Base Edge For Bolt-on Edges or Teeth
1.500 x 11.811 x 119.375
18
8E5310
8E-5310
Corner 2 hole RH
2.000 x 8.750 x 10.750
2
8E5311
8E-5311
Corner 2 hole LH
2.000 x 8.750 x 10.750
2
2530064
253-0064
New Style 2 Hole Corner Protector RH
1.250 x 8.938 x 15.000
2
2530065
253-0065
New Style 2 Hole Corner Protector LH
1.250 x 8.938 x 15.000
2
1735426
173-5426
Old Style 2 Hole Corner Protector RH
1.250 x 8.750 x 13.000
2
1735427
173-5427
Old Style 2 Hole Corner Protector LH
1.250 x 8.750 x 13.000
2
1U0593
1U-0593
Center
1.180 x 14.170 x 51.875
3
1006668
100-6668
Center
1.180 x 14.170 x 55.100
3
3G6395
3G-6395
End
1.375 x 20.252 x 8.000
3
1004046
100-4046
Heavy Duty Wider Center
1.375 x 16.000 x 51.875
3
1359410
135-9410
Heavy Duty Wider Center
1.375 x 16.000 x 55.250
3
1004044
100-4044
Heavy Duty Wider End
1.625 x 22.000 x 8.000
3
1U0593HA
1U-0593HA
HA Center (Cast)
1.750 x 15.625 x 33.500
4
3G6395HAR
3G-6395HAR
HA End RH (Cast)
1.750 x 15.625 x 9.500
3
3G6395HAL
3G-6395HAL
HA End LH (Cast)
1.750 x 15.625 x 9.500
3
1U0593TP
1U-0593TP
Bolt on Top Plate Center
1.000 x 12.586 x 33.500
4
3G6395TPR
3G-6395TPR
Bolt on Top Plate RH
1.000 x 12.586 x 5.750
3
3G6395TPL
3G-6395TPL
Bolt on Top Plate LH
1.000 x 12.586 x 5.750
3
1U0593HAN
1U-0593HAN
Narrow HA Center (Cast)
1.750 x 11.125 x 33.500
2
2085345
208-5345
C/IMP Center REV
1.180 x 14.170 x 51.875
3
9W3477
9W-3477
C/IMP Center NR RH
1.375 x 11.000 x 51.875
3
9W3478
9W-3478
C/IMP Center NR LH
1.375 x 11.000 x 51.875
3
1230336
123-0336
C/IMP End NR RH
1.375 x 18.250 x 8.000
3
1230337
123-0337
C/IMP End NR LH
1.375 x 18.250 x 8.000
3
2085343
208-5343
C/IMP End REV
1.375 x 20.250 x 8.000
3
4T6699
4T-6699
Segment
1.180 x 14.170 x 10.625
2
1406868
140-6868
HD Segment
1.375 x 14.170 x 10.625
2
1744114
174-4114
HA Segment (Cast)
1.750 x 13.500 x 10.625
2
1618573
161-8573
Rear Wear Plate
1.375 x 10.000 x 22.250
4
7I3015
7I-3015
Base Edge With Segment Holes
1.500 x 11.810 x 125.750
30
