Products information 1)Material: Carbon steel or Manganese steel or boron steel 2)Surface: yellow paint or gray paint or as your request 3)Hardness: HB280-500 or HB320~360 or HB440~500 4)Technique: forging, machining, heat treatment 5) Package: strong plywood pallet 6) Application :used in a wide variety of applications across all Caterpillar,Komatsu , Shantui graders,bulldozers,loader buckets .Multiple edge models to match your applications and job site's needs .

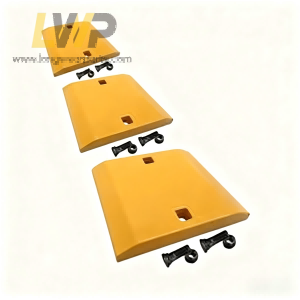

Our aftermarket full sets of Caterpillar 966 Wheel Loader Cutting Edge and End Bits replacement are bolt-on ground engaging tools designed for CAT 966 series wheel loaders, covering 966D, 966E, 966F, 966K, 966L, 966M, 966GC and XE variants. The cutting edge is the central wear segment fitted on the front lip of the loader bucket, while end bits are the corner protective pieces installed on both ends of the cutting edge.
Our aftermarket Caterpillar Loader cutting edges can be classified to Single piece solid cutting edge and Segmental cutting edge , and our aftermarket Caterpillar Loader end bits can be classified to Standard End Bit,Reinforced / Heavy Duty End Bit and Rock End Bit.
Our aftermarket Caterpillar Loader cutting edges can supply various bevel design, including Double Bevel Flat Edge(DBF),Single Bevel Flat Edge(SBF),Super V Bevel and Wide Bevel Flat Edge(WBF).
The bevel angle determines the cutting edge's penetration capability and wear life. A sharper edge penetrates more easily but also wears down faster , end users should select based on "material density + abrasiveness."
Welcome to contact us for more detailed information.Normal production lead time: 25–35 working days upon receipt of deposit. The lead time depends on order quantity and production schedule. We will confirm the exact delivery schedule and notify you once production starts. Rush orders are available upon negotiation.
Part number
Alternative number
Description
Dimension
Hole
6W2990
6W-2990
Base Edge With Segment
1.250 x 11.000 x 112.500
30
5V2772
5V-2772
Corner 1 hole RH
1.375 x 8.938 x 9.844
1
5V2773
5V-2773
Corner 1 hole LH
1.375 x 8.938 x 9.844
1
8E5320
8E-5320
Corner 2 hole RH
2
8E5321
8E-5321
Corner 2 hole LH
2
2530064
253-0064
2 Hole Corner Protector RH
1.250 x 8.938 x 15.000
2
2530065
253-0065
2 Hole Corner Protector LH
1.250 x 8.938 x 15.000
2
1735426
173-5426
2 Hole Corner Protector RH
1.250 x 8.750 x 13.000
2
1735427
173-5427
2 Hole Corner Protector LH
1.250 x 8.750 x 13.000
2
1U2406
1U-2406
Center
1.180 x 14.170 x 48.375
3
3G6395
3G-6395
End
1.375 x 20.252 x 8.000
3
1004045
100-4045
Heavy Duty Wider Center
1.375 x 16.000 x 48.375
3
1004044
100-4044
Heavy Duty Wider End
1.625 x 22.000 x 8.000
3
9W3479
9W-3479
C/IMP Center NR RH
1.375 x 11.000 x 48.500
3
9W3480
9W-3480
C/IMP Center NR LH
1.375 x 11.000 x 48.500
3
1230336
123-0336
C/IMP End NR RH
1.375 x 18.250 x 8.000
3
1230337
123-0337
C/IMP End NR LH
1.375 x 18.250 x 8.000
3
2085343
208-5343
C/IMP End REV
1.375 x 20.250 x 8.000
3
4T6698
4T-6698
Segment
1.180 x 14.170 x 9.500
2
1406867
140-6867
HD Segment
1.375 x 14.170 x 9.500
2
4T6698FHA
4T-6698FHA
HA Segment (Fabricated)
1.250 x 10.500 x 9.500
2
9V6106
9V-6106
Weld-On Wear Plate
8K9754
8K-9754
Base Edge For Bolt-on Edges
1.250 x 10.500 x 115.000
24
8K7525
8K-7525
Corner no holes RH
1.750 x 9.000 x 9.750
8K7526
8K-7526
Corner no holes LH
1.750 x 9.000 x 9.750
