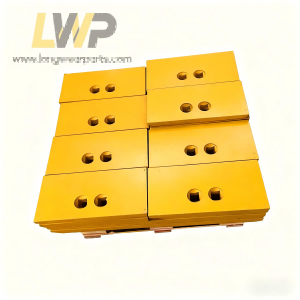

Caterpillar loader 966 cutting edge 4T9185/4T9126/4T9125

Products information
1)Material: Carbon steel or Manganese steel or boron steel
2)Surface: yellow paint or gray paint or as your request
3)Hardness: HB280-500 or HB320~360 or HB440~500
4)Technique: forging, machining, heat treatment
5) Package: strong plywood pallet
6) Application :used in a wide variety of applications across all Caterpillar,Komatsu , Shantui graders,bulldozers,loader buckets .Multiple edge models to match your applications and job site's needs .

Our aftermarket full sets of Caterpillar 966 Wheel Loader Cutting Edge and End Bits replacement are bolt-on ground engaging tools designed for CAT 966 series wheel loaders, covering 966D, 966E, 966F, 966K, 966L, 966M, 966GC and XE variants. The cutting edge is the central wear segment fitted on the front lip of the loader bucket, while end bits are the corner protective pieces installed on both ends of the cutting edge.

Our aftermarket Caterpillar Loader cutting edges can supply various bevel design, including Double Bevel Flat Edge(DBF),Single Bevel Flat Edge(SBF),Super V Bevel and Wide Bevel Flat Edge(WBF). The bevel angle determines the cutting edge's penetration capability and wear life. A sharper edge penetrates more easily but also wears down faster , end users should select based on "material density + abrasiveness."

Purchasing Notes :

1. Confirm exact model and bucket type before ordering

Distinguish machine models and confirm general bucket or light rock bucket. Different bucket configurations have different hole layouts. It is better to provide OEM part number.

2. Avoid overly hard brittle blades

Excessively high hardness leads to brittleness and edge chipping. Qualified parts must balance wear resistance and toughness.

3. Check plate thickness and flatness strictly

Inspect plate straightness and uniform thickness on arrival. Reject bent, twisted or thin plates to prevent deformation during frequent scraping work.

4. Verify standard CNC hole precision

Unqualified hole positions will cause bolt loosening and equipment vibration, accelerating wear part damage. CNC precision holes are required.

Lead Time: Stock goods 5-7 working days; Mass production 25-35 working days; Custom parts 35-50 working days. All goods will pass strict inspection before delivery. Welcome to contact us for more detailed information ！

Part number	Alternative number	Description	Dimension	Hole
1U2407	1U-2407	Center	1.180 x 14.170 x 48.125	3
1359532	135-9532	Heavy Duty Wider Center	1.375 x 16.000 x 48.125	3
4T8378	4T-8378	Multi purpose dozer center	0.750 x 8.000 x 78.875	13
4T8381	4T-8381	Multi purpose dozer end	0.750 x 8.000 x 16.813	3
9V0169	9V-0169	Spade Nose Base Edge	1.500 x 24.000 x 113.000
9V0170	9V-0170	Spade Nose Base Edge	1.500 x 22.750 x 121.500
6W2993	6W-2993	Spade Nose Base	1.750 x 22.717 x 121.460	22
4T9185	4T-9185	Center	1.180 x 14.170 x 22.500	4
4T9126	4T-9126	Center RH	1.180 x 14.170 x 29.250	3
4T9128	4T-9128	End RH	1.180 x 14.170 x 28.750	4
4T9125	4T-9125	Center LH	1.180 x 14.170 x 29.250	3
4T9127	4T-9127	End LH	1.180 x 14.170 x 28.750	4
4T6697	4T-6697	Segment	1.180 x 14.170 x 8.250	2
4T9123	4T-9123	Segment RH	1.180 x 14.170 x 14.000	2
4T9124	4T-9124	Segment LH	1.180 x 14.170 x 14.000	2
1406866	140-6866	HD Segment	1.375 x 14.170 x 8.250	2
1406864	140-6864	HD Segment RH	1.375 x 14.170 x 10.438	2
1406863	140-6863	HD Segment LH	1.375 x 14.170 x 10.438	2
1359648	135-9648	C/IMP Segment REV		2
1359649	135-9649	C/IMP Segment RH REV		2
1359647	135-9647	C/IMP Segment LH REV		2
1486915	148-6915	Spade Nose Base Edge	1.500 x 24.213 x 128.030	20
1486935	148-6935	Corner LH/RH Protectors
1358246	135-8246	Sidebar Protector	1.125 x 5.750 x 18.188
1359294	135-9294	Segment	1.625 x 13.000 x 11.810	2
1359295	135-9295	Segment RH	1.625 x 13.000 x 15.900	2
1359296	135-9296	Segment LH	1.625 x 13.000 x 15.900	2
1359544	135-9544	HA Segment (Cast)	1.750 x 18.315 x 11.811	2
1359545	135-9545	HA Segment RH (Cast)	1.750 x 18.315 x 11.969	2
1359546	135-9546	HA Segment LH (Cast)	1.750 x 18.315 x 11.969	2
6Y6351	6Y-6351	Base Edge Wear Plate	1.375 x 10.000 x 41.750	7
1541604	154-1604	Spade Nose Base Edge	1.500 x 24.213 x 128.031	22
1486934	148-6934	Corner LH/RH Protectors
1358240	135-8240	Center	1.375 x 14.173 x 22.756	4
1358241	135-8241	Center RH	1.375 x 14.170 x 34.861	4
1358243	135-8243	End RH	1.375 x 14.173 x 27.321	4
1358244	135-8244	Center LH	1.375 x 14.173 x 27.321	4
1358242	135-8242	End LH	1.375 x 14.170 x 34.861	4
