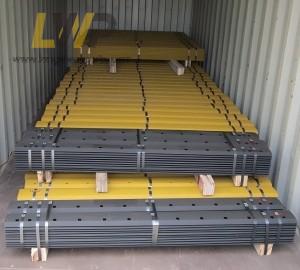

Products information 1)Material: Carbon steel or Manganese steel or boron steel 2)Surface: yellow paint or gray paint or as your request 3)Hardness: HB280-500 or HB320~360 or HB440~500 4)Technique: forging, machining, heat treatment 5) Package: strong plywood pallet 6) Application :used in a wide variety of applications across all Caterpillar,Komatsu , Shantui graders,bulldozers,loader buckets .Multiple edge models to match your applications and job site's needs .

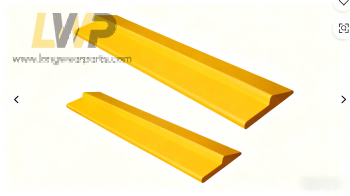

Our aftermarket full sets of Caterpillar 966 Wheel Loader Cutting Edge and End Bits replacement are bolt-on ground engaging tools designed for CAT 966 series wheel loaders, covering 966D, 966E, 966F, 966K, 966L, 966M, 966GC and XE variants. The cutting edge is the central wear segment fitted on the front lip of the loader bucket, while end bits are the corner protective pieces installed on both ends of the cutting edge.
Purchasing Notes:
1. Confirm machine model and bucket version: The 966 family has multiple generations (D/E/F/K/L/M/GC/XE). Bucket lip length, thickness, hole quantity and spacing vary for different year buckets. Verify OEM part number first to avoid dimension mismatch.
Welcome to contact us for more detailed information. We supply aftermarket cutting edges and end bits for full range Caterpillar wheel loaders, with carbon steel,boron steel and manganese steel options, single bevel ,double bevel, super V bevel and wide bevel edge are all available.
To prepare accurate quotation, pls kindly tell us your loader model,OEM number or dimensions of cutting edge and end bits,working site condition,we can provide MTC and pre-shipment inspection for bulk orders. Looking forward to your reply.
Part number
Alternative number
Description
Dimension
Hole
1U0593
1U-0593
Center
1.180 x 14.170 x 51.875
3
1004046
100-4046
Heavy Duty Wider Center
1.375 x 16.000 x 51.875
3
1U0593HA
1U-0593HA
HA Center (Cast)
1.750 x 15.625 x 33.500
4
3G6395HAR
3G-6395HAR
HA End RH (Cast)
1.750 x 15.625 x 9.500
3
3G6395HAL
3G-6395HAL
HA End LH (Cast)
1.750 x 15.625 x 9.500
3
1U0593TP
1U-0593TP
Bolt on Top Plate Center
1.000 x 12.586 x 33.500
4
3G6395TPR
3G-6395TPR
Bolt on Top Plate RH
1.000 x 12.586 x 5.750
3
3G6395TPL
3G-6395TPL
Bolt on Top Plate LH
1.000 x 12.586 x 5.750
3
1U0593HAN
1U-0593HAN
Narrow HA Center (Cast)
1.750 x 11.125 x 33.500
2
2085345
208-5345
C/IMP Center REV
1.180 x 14.170 x 51.875
3
9W3477
9W-3477
C/IMP Center NR RH
1.375 x 11.000 x 51.875
3
9W3478
9W-3478
C/IMP Center NR LH
1.375 x 11.000 x 51.875
3
4T6699
4T-6699
Segment
1.180 x 14.170 x 10.625
2
1406868
140-6868
HD Segment
1.375 x 14.170 x 10.625
2
1744114
174-4114
HA Segment (Cast)
1.750 x 13.500 x 10.625
2
1618573
161-8573
Rear Wear Plate
1.375 x 10.000 x 22.250
4
7I3015
7I-3015
Base Edge With Segment
1.500 x 11.810 x 125.750
30
1006668
100-6668
Center
1.180 x 14.170 x 55.100
3
1406823
140-6823
HD Center
1.375 x 14.170 x 55.100
3
1677430
167-7430
HD End
1.625 x 20.180 x 8.000
3
1359410
135-9410
Heavy Duty Wider Center
1.375 x 16.000 x 55.250
3
1006668HA
100-6668HA
HA Center (Cast)
1.750 x 15.625 x 35.375
4
1006668TP
100-6668TP
Bolt on Top Plate Center
1.000 x 12.586 x 35.375
4
1006668HAN
100-6668HAN
Narrow HA Center (Cast)
1.750 x 11.125 x 35.375
2
1073287
107-3287
C/IMP Center NR RH
1.375 x 12.000 x 55.250
3
1073286
107-3286
C/IMP Center NR LH
1.375 x 12.000 x 55.250
3
1006666
100-6666
Segment
1.180 x 14.170 x 11.540
2
1406870
140-6870
HD Segment
1.375 x 14.170 x 11.540
2
1744116
174-4116
HA Segment (Cast)
1.750 x 13.500 x 11.563
2
1471469
147-1469
Base Edge
1069290
106-9290
End
1.375 x 20.250 x 9.000
3
2480571
248-0571
Base Edge For Bolt-on Edges
9W0775
9W-0775
Center
1.375 x 16.000 x 29.875
5
9W6615
9W-6615
End
1.375 x 16.000 x 33.375
5
2482419
248-2419
Bolt-On Wear Plate
4
2687460
268-7460
Base Edge For Bolt-on Edges
9W6609
9W-6609
Center
1.375 x 16.000 x 39.125
6
1492865
149-2865
Base Edge Without Holes
6W2989
6W-2989
Base Edge With Segment
1.250 x 11.125 x 111.875
30
