Products information 1)Material: Carbon steel or Manganese steel or boron steel 2)Surface: yellow paint or gray paint or as your request 3)Hardness: HB280-500 or HB320~360 or HB440~500 4)Technique: forging, machining, heat treatment 5) Package: strong plywood pallet 6) Application :used in a wide variety of applications across all Caterpillar,Komatsu , Shantui graders,bulldozers,loader buckets .Multiple edge models to match your applications and job site's needs .
Long wear parts product line includes a comprehensive array of Cutting edge, Segment ,Half arrow,Spade Nose Base Edge,Protector compatible with all makes and models of Caterpillar loaders .
Long wear parts supply full range of bolt-on and weld-in blades , edge design includes Single bevel flat edge(SBF), Wide Bevel flat edge(WBF),Double bevel flat edge(DBF).
Part number
Alternative number
Description
Dimension
Hole
2530062
253-0062
New Style 2 Hole Corner Protector RH
1.125 x 8.188 x 13.375
2
2530063
253-0063
New Style 2 Hole Corner Protector LH
1.125 x 8.188 x 13.375
2

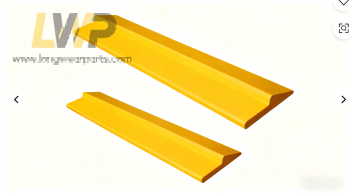

1U0599
1U-0599
Center
1.180 x 14.170 x 38.445
3
1U0600
1U-0600
Center
1.180 x 14.170 x 42.500
3
4T8101
4T-8101
End
1.250 x 19.625 x 6.688
3
4T6692
4T-6692
Center Segment
1.000 x 11.000 x 7.688
2
4T6693
4T-6693
End Segment
1.000 x 11.000 x 8.250
2
4T6692HA
4T-6692HA
HA Segment (Cast)
1.375 x 10.875 x 7.688
2
4T6693HA
4T-6693HA
HA Segment (Cast)
1.375 x 10.875 x 8.250
2
9V5340
9V-5340
Base Edge Without Holes
1.250 x 10.500 x 92.375
4V8667
4V-8667
Corner 1 hole RH
1.000 x 6.375 x 10.000
4V8668
4V-8668
Corner 1 hole LH
1.000 x 6.375 x 10.000
9W6748
9W-6748
Rear Wear Plate
1.000 x 10.000 x 21.125
4
6W2980
6W-2980
Base Edge With Segment Holes
1.250 x 11.000 x 97.500
30
4V3174
4V-3174
Base Edge For Bolt-on Edges or Teeth
1.250 x 11.000 x 97.500
18
4T6694
4T-6694
Segment
1.000 x 11.000 x 8.860
2
1321035
132-1035
HD Segment
1.375 x 11.000 x 8.860
2
4T6694HA
4T-6694HA
HA Segment (Cast)
1.375 x 10.875 x 9.000
2
9V5328
9V-5328
Base Edge Without Holes
1.250 x 10.500 x 100.500
8Y6263
8Y-6263
Base Edge With Segment Holes
1.250 x 11.125 x 98.375
30
5V2773
5V-2773
Corner 1 hole LH
1.375 x 8.938 x 9.844
1
5V2772
5V-2772
Corner 1 hole RH
1.375 x 8.938 x 9.844
1
2530064
253-0064
New Style 2 Hole Corner Protector RH
1.250 x 8.938 x 15.000
2
2530065
253-0065
New Style 2 Hole Corner Protector LH
1.250 x 8.938 x 15.000
2
