Products information 1)Material: Carbon steel or Manganese steel or boron steel 2)Surface: yellow paint or gray paint or as your request 3)Hardness: HB280-500 or HB320~360 or HB440~500 4)Technique: forging, machining, heat treatment 5) Package: strong plywood pallet 6) Application :used in a wide variety of applications across all Caterpillar,Komatsu , Shantui graders,bulldozers,loader buckets .Multiple edge models to match your applications and job site's needs .

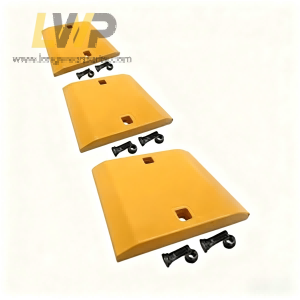

Our aftermarket full sets of Caterpillar 960 Cutting Edge and End Bits replacement are heavy-duty GET wear components specially designed for Caterpillar 960 medium-large wheel loader. The Cat 960 own stronger breakout force, larger bucket capacity and higher working efficiency than 950 series, is widely used in large quarries, crushed stone processing, mine auxiliary loading, port bulk stacking, highway foundation backfill and high-load aggregate stockpile handling.
Our aftermarket Caterpillar Loader cutting edges can be classified to Single piece solid cutting edge and Segmental cutting edge , and our aftermarket Caterpillar Loader end bits can be classified to Standard End Bit,Reinforced / Heavy Duty End Bit and Rock End Bit.
Our aftermarket Caterpillar Loader cutting edges can supply various bevel design, including Double Bevel Flat Edge(DBF),Single Bevel Flat Edge(SBF),Super V Bevel and Wide Bevel Flat Edge(WBF). The bevel angle determines the cutting edge's penetration capability and wear life. A sharper edge penetrates more easily but also wears down faster , end users should select based on "material density + abrasiveness."
Lead Time: Stock goods 5-7 working days; Mass production 25-35 working days; Custom parts 35-50 working days. All goods will pass strict inspection before delivery. elcome to contact us for more detailed information !
Part number
Alternative number
Description
Dimension
Hole
1U0593
1U-0593
Center
1.180 x 14.170 x 51.875
3
3G6395
3G-6395
End
1.375 x 20.252 x 8.000
3
1004046
100-4046
Heavy Duty Wider Center
1.375 x 16.000 x 51.875
3
1004044
100-4044
Heavy Duty Wider End
1.625 x 22.000 x 8.000
3
1U0593HA
1U-0593HA
HA Center (Cast)
1.750 x 15.625 x 33.500
4
3G6395HAR
3G-6395HAR
HA End RH (Cast)
1.750 x 15.625 x 9.500
3
3G6395HAL
3G-6395HAL
HA End LH (Cast)
1.750 x 15.625 x 9.500
3
1U0593TP
1U-0593TP
Bolt on Top Plate Center
1.000 x 12.586 x 33.500
4
3G6395TPR
3G-6395TPR
Bolt on Top Plate RH
1.000 x 12.586 x 5.750
3
3G6395TPL
3G-6395TPL
Bolt on Top Plate LH
1.000 x 12.586 x 5.750
3
1U0593HAN
1U-0593HAN
Narrow HA Center
1.750 x 11.125 x 33.500
2
2085345
208-5345
C/IMP Center REV
1.180 x 14.170 x 51.875
3
2085343
208-5343
C/IMP End REV
1.375 x 20.250 x 8.000
3
9W3477
9W-3477
C/IMP Center NR RH
1.375 x 11.000 x 51.875
3
9W3478
9W-3478
C/IMP Center NR LH
1.375 x 11.000 x 51.875
3
1230336
123-0336
C/IMP End NR RH
1.375 x 18.250 x 8.000
3
1230337
123-0337
C/IMP End NR LH
1.375 x 18.250 x 8.000
3
4T6699
4T-6699
Segment
1.180 x 14.170 x 10.625
2
1406868
140-6868
HD Segment
1.375 x 14.170 x 10.625
2
1744114
174-4114
HA Segment (Cast)
1.750 x 13.500 x 10.625
2
6W2973
6W-2973
Spade Nose Base Edge
1.375 x 19.410 x 110.830
18
6W3468
6W-3468
Corner no holes LH/RH
1.250 x 6.375 x 8.750
7T5962
7T-5962
Center
1.180 x 14.170 x 20.875
4
7T5963
7T-5963
Center RH
1.180 x 14.170 x 28.438
4
7T5960
7T-5960
End RH
1.180 x 14.170 x 24.625
4
7T5961
7T-5961
Center LH
1.180 x 14.170 x 28.438
4
7T5964
7T-5964
End RH
1.180 x 14.170 x 24.625
4
4T3015
4T-3015
Segment
1.180 x 14.170 x 10.125
2
4T9123
4T-9123
Segment RH
1.180 x 14.170 x 14.000
2
4T9124
4T-9124
Segment LH
1.180 x 14.170 x 14.000
2
1321038
132-1038
HD Segment
1.375 x 14.250 x 10.125
2
1321039
132-1039
HD Segment RH
1.375 x 14.250 x 14.000
2
1321040
132-1040
HD Segment LH
1.375 x 14.250 x 14.000
2
9C0967
9C-0967
Spade Nose Base Edge
1.375 x 19.375 x 110.813
