Caterpillar loader 931 933 935 cutting edge 4T8796/4T2915/4T2914

Products information
1)Material: Carbon steel or Manganese steel or boron steel
2)Surface: yellow paint or gray paint or as your request
3)Hardness: HB280-500 or HB320~360 or HB440~500
4)Technique: forging, machining, heat treatment

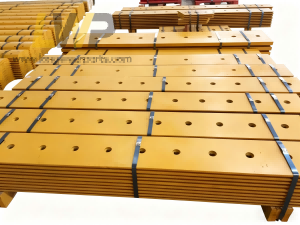

5) Package: strong plywood pallet
6) Application :used in a wide variety of applications across all Caterpillar,Komatsu , Shantui graders,bulldozers,loader buckets .Multiple edge models to match your applications and job site's needs .

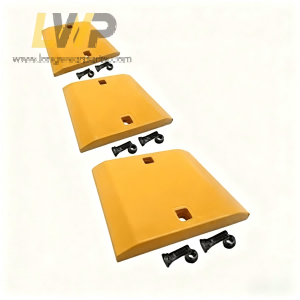

Our aftermarket full sets of Caterpillar 931, 933 and 935 Cutting Edge and End Bits replacement are heavy-duty bolt-on GET wear parts engineered for Caterpillar mid-large wheel loaders 931,933,935 series. They are widely deployed in large aggregate quarries, crushed stone yards, bulk stockpile rehandling, mine auxiliary loading, highway construction and large earth backfill projects.

To ensure stable quality,our factory execute strict quality inspection during our entire process :

1. Material Test: we will do raw material spectrum inspection with mill test certificate, and prevent inferior steel substitution.

2. Hardness Test: our technican will do rockwell hardness test for each batch, and ensure hardness controlled at reasonable range, prevent premature wear and chipping.

3. Dimensional Inspection: we will check total length, thickness, width, bolt hole pitch and diameter by caliper & fixture, tolerance controlled within ±1.5mm.

4. Visual & NDT Inspection: we will do visual check for surface cracks, blowholes and casting defects. Magnetic particle inspection available for critical batches to detect internal microcracks.

5. Heat Treatment Inspection: our technican will measure hardened depth to ensure sufficient wear layer, to avoid thin surface hardening and early penetration.

6. Bolt Hole Fitting Test: we will do bolt assembly test, smooth insertion, no oval holes, and flat contact without warping.

We supply aftermarket cutting edges and end bits for full range Caterpillar wheel loaders, with carbon steel,boron steel and manganese steel options, single bevel ,double bevel, super V bevel and wide bevel edge are all available.

To prepare accurate quotation, pls kindly tell us your loader model,OEM number or dimensions of cutting edge and end bits,working site condition,we can provide MTC and pre-shipment inspection for bulk orders. Looking forward to your reply.

Part number	Alternative number	Description	Dimension	Hole
5G3477	5G-3477	Base Edge For Bolt-on Edges	0.750 x 8.000 x 91.760	14
4T8796	4T-8796	Center	0.750 x 10.000 x 48.875	3
4T2915	4T-2915	Center	0.750 x 10.000 x 58.500	3
4T2914	4T-2914	End	0.750 x 10.000 x 17.000	2
1957136	195-7136	HD Intermediate End RH	1.000 x 10.000 x 38.346	3
1957135	195-7135	HD Intermediate End LH	1.000 x 10.000 x 54.566	4
5G1523	5G-1523	Multi purpose dozer center	0.625 x 6.000 x 72.360
6S6501	6S-6501	Base Edge For Bolt-on Edges	0.750 x 7.500 x 74.720	12
5G2395	5G-2395	Base Edge For Bolt-on Edges	0.750 x 7.500 x 74.730	16
6S7291	6S-7291	Base Edge Without Holes	0.750 x 7.500 x 94.750
4T2919	4T-2919	Center	0.750 x 10.000 x 37.250	3
4T2912	4T-2912	Center	0.750 x 10.000 x 37.609	4
8Y5291	8Y-5291	Multi purpose dozer center	0.625 x 6.000 x 76.610
6S4738	6S-4738	Multi purpose dozer center	0.625 x 6.000 x 82.000
8Y4738	8Y-4738	Base Edge With Segment	0.750 x 7.500 x 76.876	30
5G8467	5G-8467	Base Edge For Bolt-on Edges	0.750 x 7.500 x 76.875	14
6S6500	6S-6500	Base Edge For Bolt-on Edges	0.750 x 7.500 x 84.660	14
6S3237	6S-3237	Corner no holes RH
6S3238	6S-3238	Corner no holes LH
5G2807	5G-2807	Corner 1 hole RH	0.750 x 5.375 x 7.125	1
5G2806	5G-2806	Corner 1 hole LH	0.750 x 5.375 x 7.125	1
4T2920	4T-2920	Center	0.750 x 10.000 x 38.000	3
4T2918	4T-2918	End	0.750 x 10.000 x 23.250	2
9W9943	9W-9943	Center	0.750 x 10.000 x 48.500	4
9W9944	9W-9944	End	0.750 x 10.000 x 14.688	2
1957138	195-7138	HD Center	1.000 x 10.000 x 39.064	4
6Y6362	6Y-6362	Segment	0.750 x 10.000 x 7.874	2
5G2808	5G-2808	Base Edge For Bolt-on Edges	0.750 x 7.500 x 72.000	16
4T2911	4T-2911	Center	0.750 x 10.000 x 45.031	4
4T2910	4T-2910	End	0.750 x 10.000 x 13.938	2
1957130	195-7130	HD Center	1.000 x 10.000 x 36.526	4
5G2809	5G-2809	Base Edge For Bolt-on Edges	0.750 x 7.500 x 81.875	14
1957132	195-7132	HD Intermediate End RH	1.000 x 10.000 x 34.626	3
1957131	195-7131	HD Intermediate End LH	1.000 x 10.000 x 48.376	4
