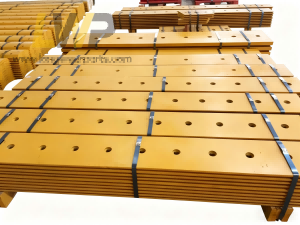

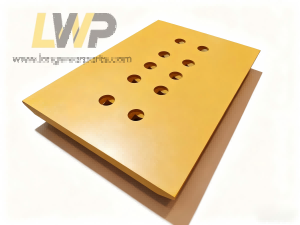

Caterpillar loader 902 906 908 cutting edge 132-4724/160-5334/138-8932

Products information
1)Material: Carbon steel or Manganese steel or boron steel
2)Surface: yellow paint or gray paint or as your request
3)Hardness: HB280-500 or HB320~360 or HB440~500
4)Technique: forging, machining, heat treatment
5) Package: strong plywood pallet
6) Application :used in a wide variety of applications across all Caterpillar,Komatsu , Shantui graders,bulldozers,loader buckets .Multiple edge models to match your applications and job site's needs .

Product Description:

Our aftermarket full sets of Caterpillar 902, 906, 908 Cutting Edge and End Bits are professional bolt-on GET wear parts specially designed for Caterpillar 900-series compact wheel loaders.These compact loaders are widely used in urban construction, residential site backfilling, landscaping, farm work, road maintenance, concrete yard cleanup, sand and gravel handling, and light aggregate loading.

Our aftermarket Caterpillar Loader cutting edges can be classified to Single piece solid cutting edge and Segmental cutting edge , and our aftermarket Caterpillar Loader end bits can be classified to Standard End Bit,Reinforced /Heavy Duty End Bit and Rock End Bit.

Our aftermarket Caterpillar Loader cutting edges can supply various bevel design, including Double Bevel Flat Edge(DBF),Single Bevel Flat Edge(SBF),Super V Bevel and Wide Bevel Flat Edge(WBF). The bevel angle determines the cutting edge's penetration capability and wear life. A  sharper edge penetrates more easily but also wears down faster , end users should select based on "material density + abrasiveness."

Welcome to contact us for more detailed information : we promise that every batch undergoes hardness testing, flatness calibration and hole position inspection. Depend on stable quality, reasonable price and reliable lead time , we win more and more global customers's recognize and long-term orders !

Part number Alternative number Description Dimension Hole
1324724 132-4724 Bolt On (Flat Head Screws) 0.625 x 6.500 x 74.410 13
1324724PB 132-4724PB Bolt On (Plow Bolts) 0.625 x 6.500 x 74.409 13
1605334 160-5334 Base Edge For Bolt-on Edges 0.750 x 8.000 x 70.157 20
1388932 138-8932 Base Edge For Bolt-on Edges 0.750 x 6.000 x 74.213 20
9R5205 9R-5205 Corner no holes RH 0.750 x 6.000 x 5.563
9R5206 9R-5206 Corner no holes LH 0.750 x 6.000 x 5.563
1324723 132-4723 Bolt On (Flat Head Screws) 0.625 x 6.500 x 70.470 13
1324723PB 132-4723PB Bolt On (Plow Bolts) 0.625 x 6.500 x 70.315 13
1324720 132-4720 Bolt on Unitooth 2.000 x 2.313 x 9.188 2
1521051 152-1051 Base Edge
1324719 132-4719 Bolt On (Flat Head Screws) 0.625 x 6.500 x 77.000 13
1324719PB 132-4719PB Bolt On (Plow Bolts) 0.625 x 6.500 x 77.000 13
1471040 147-1040 Base Edge
1388937 138-8937 Base Edge 0.750 x 8.000 x 81.102 20
1324725 132-4725 Bolt On (Flat Head Screws) 0.625 x 6.500 x 81.890 13
1324725PB 132-4725PB Bolt On (Plow Bolts) 0.625 x 6.500 x 81.889 13
