Products information 1)Material: Carbon steel 2)Surface: yellow paint or gray paint or as your request 3)Hardness: HB280-320 4)Technique: forging, machining, heat treatment 5) Package: strong plywood pallet 6) Application :used in a wide variety of applications across all Caterpillar,Komatsu , Shantui graders,bulldozers,loader buckets .Multiple edge models to match your applications and job site's needs .

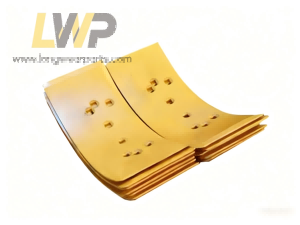

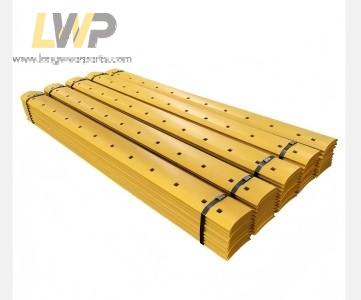

Our aftermarket full sets of Caterpillar Curved Grader Blade replacement are the OEM-standard curved cutting edge specially designed for Cat motor grader fine grading and soil rolling operations. Our aftermarket curved heat treated cutting edges/cutting edges are preferred wear part for highway fine finishing, road camber shaping, pavement resurfacing, snow removal and landscape precision grading.
Our Caterpillar motor grader bolt on cutting edges/grade blades through hardened guaranteed against breakage, the grader blade cutting edges have 0.5" thick, 0.625" thick,0.75" thick,1" thick. It takes 3/4 " grade 9 plow bolts and 3/4" nuts.
We can supply four bevel options for Caterpillar curved grader cutting edges:
A :Double Bevel Curved (DBC)：we adopt 33° standard double bevel on upper and lower edges, reversible 180°dual-life design.Can balance wear resistance and toughness.
B: Single Bevel Curved (SBC)：Single-sided bevel with square back edge, can achieve sharper cutting tip and lower penetration resistance while the disadvantage is Non-reversible.
C: Square Edge Curved：No bevel, full square blunt edge. Own maximum structural rigidity and anti-chipping performance, can resists minor rock impact and edge breakage.
D: Carbide Reinforced Curved：Double/single bevel base with tungsten carbide tiles welded on the working edge. High initial procurement costs ,but you will gain 3–5 times longer life than standard blades.
Thanks for your inquiry about our aftermarket Cat curved grader cutting edge. To quote precisely, please share your grader model, OEM part number, plate thickness and bevel requirement. I can send you price together with material & heat treatment test report immediately.
| Part number | Alternative number | Description | Dimension | Hole |
| 9W2294 | 9W-2294 | 4 Foot | 0.500 x 6.000 x 48.000 | 6 |
| 9W2296 | 9W-2296 | 5 Foot | 0.500 x 6.000 x 60.000 | 11 |
| 9W2298 | 9W-2298 | 6 Foot | 0.500 x 6.000 x 72.000 | 8 |
| 9W2300 | 9W-2300 | 7 Foot | 0.500 x 6.000 x 84.000 | 9 |
| 9W2302 | 9W-2302 | 8 Foot | 0.500 x 6.000 x 96.000 | 10 |
| 9W2304 | 9W-2304 | 10 Foot | 0.500 x 6.000 x 120.000 | 12 |
| 9W2306 | 9W-2306 | 12 Foot | 0.500 x 6.000 x 144.000 | 14 |
| 9W2308 | 9W-2308 | 14 Foot | 0.500 x 6.000 x 168.000 | 16 |
| 9W2310 | 9W-2310 | 4 Foot | 0.500 x 8.000 x 48.000 | 6 |
| 9W2312 | 9W-2312 | 5 Foot | 0.500 x 8.000 x 60.000 | 7 |
| 9W2314 | 9W-2314 | 6 Foot | 0.500 x 8.000 x 72.000 | 8 |
| 9W2316 | 9W-2316 | 7 Foot | 0.500 x 8.000 x 84.000 | 9 |
| 9W2318 | 9W-2318 | 8 Foot | 0.500 x 8.000 x 96.000 | 10 |
| 9W2320 | 9W-2320 | 10 Foot | 0.500 x 8.000 x 120.000 | 12 |
| 9W2322 | 9W-2322 | 12 Foot | 0.500 x 8.000 x 144.000 | 14 |
| 9W2324 | 9W-2324 | 14 Foot | 0.500 x 8.000 x 168.000 | 16 |
| 4T2231CAR-6 | 4T-2231CAR-6 | 6 Foot | 1 .000 x 8.000 x 72.000 | 13 |
| 4T2233CAR-6 | 4T-2233CAR-6 | 7 Foot | 1 .000 x 8.000 x 84.000 | 15 |
| 4T2236CAR-6 | 4T-2236CAR-6 | 8 Foot | 1 .000 x 8.000 x 96.000 | 17 |
