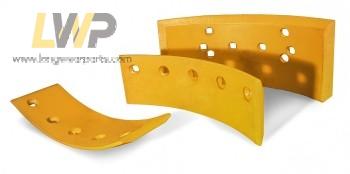

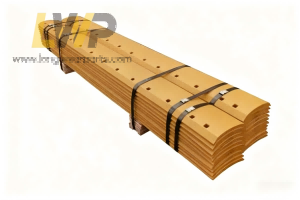

Products information 1)Material: Carbon steel 2)Surface: yellow paint or gray paint or as your request 3)Hardness: HB280-320 4)Technique: forging, machining, heat treatment 5) Package: strong plywood pallet 6) Application :used in a wide variety of applications across all Caterpillar,Komatsu , Shantui graders,bulldozers,loader buckets .Multiple edge models to match your applications and job site's needs .
Long wear parts product line includes a comprehensive array of Caterpillar snow plow blade, Caterpillar grader blade,Caterpillar grader end bit,Caterpillar overlay compatible with all makes and models of Caterpillar machines .
Long wear parts supply edge design includes Double bevel curved and Double bevel flat available from 13mm to 25mm thick ,we also accept customized parts .
Part number
Alternative number
Description
Dimension
Hole
9W2293
9W-2293
4 Foot
0.500 x 6.000 x 48.000
6
9W2295
9W-2295
5 Foot
0.500 x 6.000 x 60.000
7
9W2297
9W-2297
6 Foot
0.500 x 6.000 x 72.000
8
9W2299
9W-2299
7 Foot
0.500 x 6.000 x 84.000
9
9W2301
9W-2301
8 Foot
0.500 x 6.000 x 96.000
10
4Z8968
4Z-8968
9 Foot
0.500 x 6.000 x 108.000
11
9W2303
9W-2303
10 Foot
0.500 x 6.000 x 120.000
12
9W2305
9W-2305
12 Foot
0.500 x 6.000 x 144.000
14
9W2307
9W-2307
14 Foot
0.500 x 6.000 x 168.000
16
9W2309
9W-2309
4 Foot
0.500 x 8.000 x 48.000
6
9W2311
9W-2311
5 Foot
0.500 x 8.000 x 60.000
7
9W2313
9W-2313
6 Foot
0.500 x 8.000 x 72.000
8
9W2315
9W-2315
7 Foot
0.500 x 8.000 x 84.000
9
9W2317
9W-2317
8 Foot
0.500 x 8.000 x 96.000
10
9W2319
9W-2319
10 Foot
0.500 x 8.000 x 120.000
12
9W2321
9W-2321
12 Foot
0.500 x 8.000 x 144.000
14
9W2323
9W-2323
14 Foot
0.500 x 8.000 x 168.000
16
