Products information 1)Material: boron steel 2)Surface: yellow paint or gray paint or as your request 3)Hardness: HB440~500 4)Technique: forging, machining, heat treatment 5) Package: strong plywood pallet 6) Application :used in a wide variety of applications across all Caterpillar,Komatsu , Shantui graders,bulldozers,loader buckets .Multiple edge models to match your applications and job site's needs .

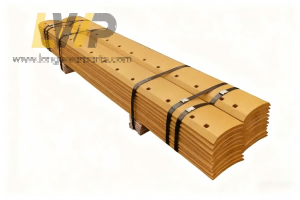

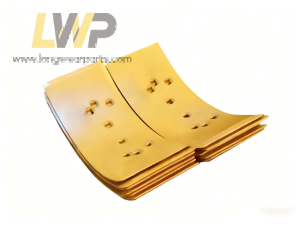

Our aftermarket full sets of Caterpillar Curved Grader blades replacement are bolt-on GET wear parts specially designed for Caterpillar motor graders.Different from flat blades,the curved surface helps gather, roll and discharge materials effectively and reduces material sticking on blade surface. Our aftermarket Caterpillar curved grader blades and end bits are widely applied for road grading, slope trimming, ditching, material spreading, mine haul road maintenance and subgrade shaping.
We can supply various blade styles for Caterpillar curved motor graders, including Double bevel curved blade,Single bevel curved blade,Serrated curved blade and Fishtail curved blade.Different bevel design fit different working site condition.We can also supply various end bit styles,including Standard square end bit,Tapered end bit,Heavy-duty reinforced end bit and Serrated end bit.
Welcome to contact us for more details ! We provide various materials to fit different working condition: 35MnB for severe mine service with constant rock pounding and heavy abrasion; 30MnB for mine and aggregate yard.; NM400/NM450 for fine sand and aggregate scouring; Mn13 Manganese Steel forheavy rock impact conditions and C80 High Carbon Steel for light earthmoving.Please provide grader model, OEM part number, material and quantity ,we will provide price and lead time promptly.
| Part number | Alternative number | Description | Dimension | Hole |
| 9W1835 | 9W-1835 | 2 Foot | 0.625 x 6.000 x 24.000 | 5 |
| 7D4508 | 7D-4508 | 5 Foot | 0.625 x 6.000 x 60.000 | 11 |
| 5D9553 | 5D-9553 | 6 Foot | 0.625 x 6.000 x 72.000 | 13 |
| 5D9554 | 5D-9554 | 7 Foot | 0.625 x 6.000 x 84.000 | 15 |
| 8J4043 | 8J-4043 | 8 Foot | 0.625 x 6.000 x 96.000 | 17 |
| 1093137 | 109-3137 | 2 Foot | 0.625 x 8.000 x 24.000 | 5 |
| 1321088 | 132-1088 | 4 Foot | 0.625 x 8.000 x 48.000 | 9 |
| 7D4509 | 7D-4509 | 5 Foot | 0.625 x 8.000 x 60.000 | 11 |
| 5D9562 | 5D-9562 | 6 Foot | 0.625 x 8.000 x 72.000 | 13 |
| 5D9561 | 5D-9561 | 7 Foot | 0.625 x 8.000 x 84.000 | 15 |
| 5D9731 | 5D-9731 | 8 Foot | 0.625 x 8.000 x 96.000 | 17 |
| 1321011 | 132-1011 | 12 Foot | 0.625 x 8.000 x 144.000 |
